InstallingtheDriveShaft

If roller bearings are assembled, proceed to “Installing the Oil Seal and Seal Cover” on page94.

5.Use plastic-headed hammer to tap lightly on the outer rim of bearing to install drive shaft (111) assembly onto its support. See Figure 364.

6.Complete steps 1-5 for both the rear and front pumps.

1.Install bearing spacer (127) onto drive shaft (111). See Figure 3-62 and Figure 3-63.

2.Install roller bearing (123) onto drive shaft (111). See Figure 3-63.

3.Install snap ring (824) onto drive shaft (111). See Figure 3-63.

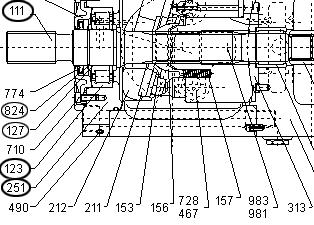

4.Install drive shaft assembly (111), complete with bearing (123), bearing spacer (127) and snap ring (824), onto swash plate support (251). See Figure 3-63.

IMPORTANT:Do not use plastic-headed hammer to tap drive shaft (111) because damage may occur.
