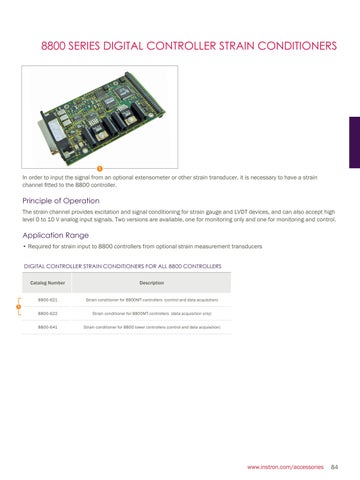

8800 SERIES DIGITAL CONTROLLER STRAIN CONDITIONERS
1
In order to input the signal from an optional extensometer or other strain transducer, it is necessary to have a strain channel fitted to the 8800 controller.
Principle of Operation The strain channel provides excitation and signal conditioning for strain gauge and LVDT devices, and can also accept high level 0 to 10 V analog input signals. Two versions are available, one for monitoring only and one for monitoring and control.
Application Range • Required for strain input to 8800 controllers from optional strain measurement transducers DIGITAL CONTROLLER STRAIN CONDITIONERS FOR ALL 8800 CONTROLLERS Catalog Number
Description
8800-621
Strain conditioner for 8800MT controllers (control and data acquisition)
8800-622
Strain conditioner for 8800MT controllers (data acquisition only)
8800-641
Strain conditioner for 8800 tower controllers (control and data acquisition)
1
