8800 SERIES DIGITAL CONTROLLER STRAIN CONDITIONERS

In order to input the signal from an optional extensometer or other strain transducer, it is necessary to have a strain channel fitted to the 8800 controller.

Principle of Operation

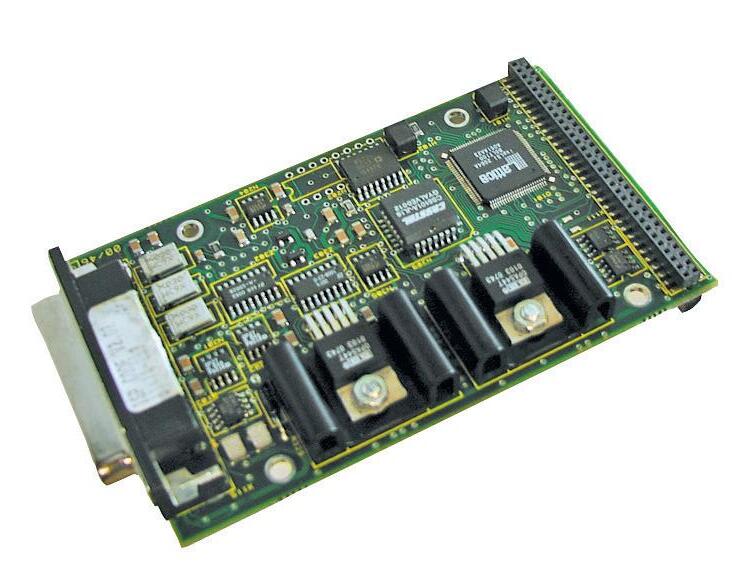

The strain channel provides excitation and signal conditioning for strain gauge and LVDT devices, and can also accept high level 0 to 10 V analog input signals. Two versions are available, one for monitoring only and one for monitoring and control.

Application Range

• Required for strain input to 8800 controllers from optional strain measurement transducers

DIGITAL CONTROLLER STRAIN CONDITIONERS FOR ALL 8800 CONTROLLERS

Catalog Number

Description

8800-621 Strain conditioner for 8800MT controllers (control and data acquisition)

8800-622 Strain conditioner for 8800MT controllers (data acquisition only)

8800-641 Strain conditioner for 8800 tower controllers (control and data acquisition)

2.3
