COUPLINGS, ADAPTERS AND ATTACHMENT KITS

BASE/LOAD CELL ADAPTERS

Catalog Number Description

2501-113

2501-148

2501-119

2501-346

2501-159

2501-338

8000-025

Grip Adapters

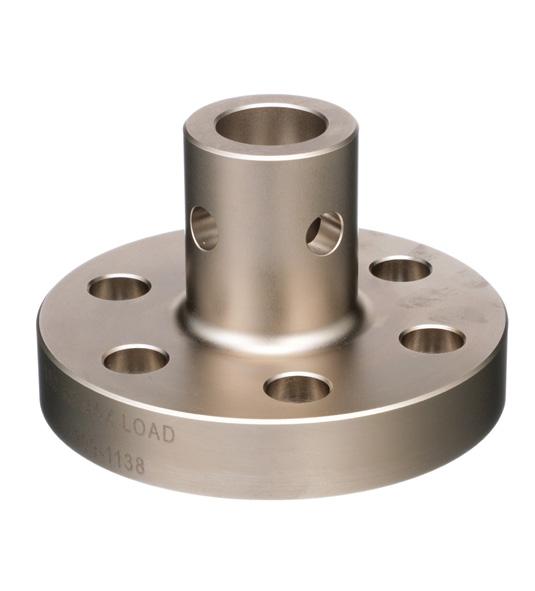

Crosshead/base adapter, rated capacity: 100 kN 6 × M10 on 10OPC to 1/2 in accessory clevis-end fitting

Crosshead/base adapter, rated capacity: 100 kN 6 × M10 on 10OPC to M48 × 2 LH accessory threaded-end fitting

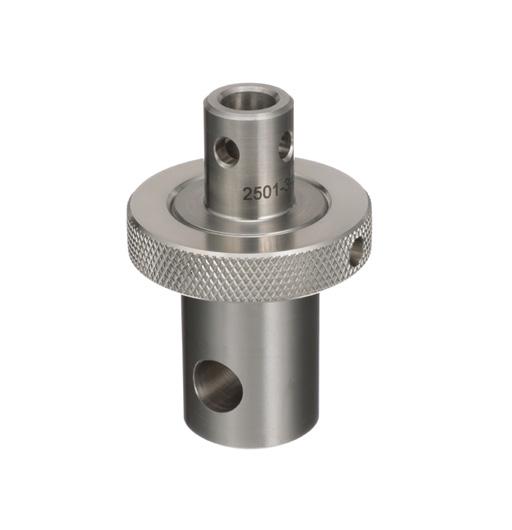

Adapter, rated capacity: 100 N, 1/2 in to 3/16 in accessory clevis-end fitting

Adapter, rated capacity: 10 kN, 1/2 in to 6 mm accessory clevis-end fitting

Adapter, rated capacity: 10 kN, 16 mm to 6 mm accessory clevis-end fitting

Adapter, rated capacity: 100 kN, 1/2 in to 16 mm accessory clevis-end fitting

M30LHm to 1/2 inch clevis pin (Type Df)

Catalog Number Description

2501-194

2501-208

2501-209

2501-210

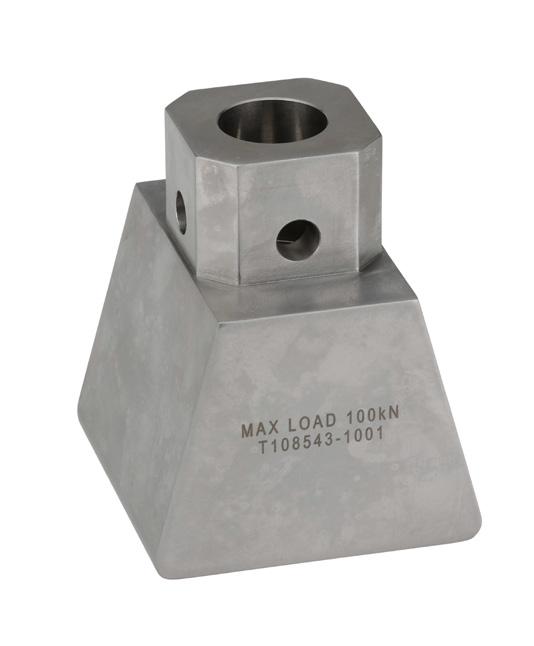

Piggyback adapter, rated capacity: 100 kN, converts pneumatic wedge grips 2716-110, 2716-120 to M30×2 LH with 6 x M10 on 100 PCD

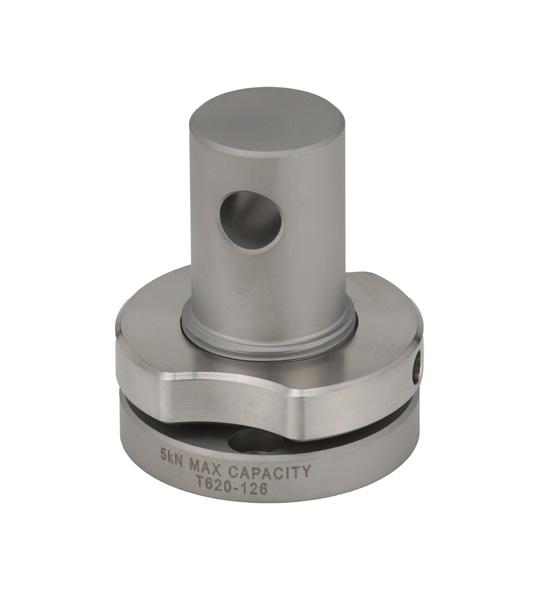

Piggyback Load Cell Adapter for use with Type D load cell clevis. Allows the high capacity cell to remain bolted to the crosshead while a more sensitive, low capacity cell is installed. Bolts to load cell and provides a Type D f (1/2” clevis) attachment. For mounting 2580 Series load cells. Compatible with 500 N, 1kN, 1kN & 5kN capacities only.

Piggyback Load Cell Adapter for use with Type D load cell clevis. Allows the high capacity cell to remain bolted to the crosshead while a more sensitive, low capacity cell is installed. Bolts to load cell and provides a Type D f (1/2” clevis) attachment. For mounting 2580 Series load cells. Compatible with 10kN, 30kN & 50kN capacities only.

Piggyback Load Cell Adapter for use with Type D load cell clevis. Allows the high capacity cell to remain bolted to the crosshead while a more sensitive, low capacity cell is installed. Bolts to load cell and provides a Type D f (1/2” clevis) attachment. For mounting 2530 Series load cells. Compatible with 5 N, 10 N, 50 N, 100 N, 500 N, 1kN, 2kN & 5kN capacities only.

2501-235 Adapter for mounting 2530, 2525 or 2518 load cells on 338X floor model systems. The lower capacity load cell can be either connected to the 338X load cell or the 338X load cell can be removed and the lower capacity load cell can then be connected directly to the crosshead.

2501-256

Piggyback adapter, rated capacity: 300 kN, converts hydraulic wedge grips 2742-501, For mounting 2580 Series load cells. Compatible with 500 N, 1kN, 1kN & 5kN capacities only.
