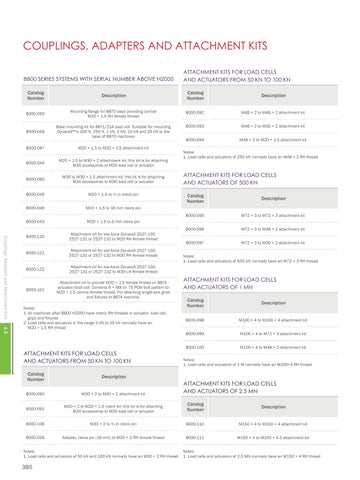

COUPLINGS, ADAPTERS AND ATTACHMENT KITS 8800 SERIES SYSTEMS WITH SERIAL NUMBER ABOVE H2000
ATTACHMENT KITS FOR LOAD CELLS AND ACTUATORS FROM 50 KN TO 100 KN
Couplings, Adapters and Attachment Kits
Catalog Number
Description
Catalog Number
Description
8000-050
Mounting flange for 8870 base providing central M20 × 1.5 RH female thread
8000-092
M48 × 2 to M48 × 2 attachment kit
8000-049
Base mounting kit for 8871/214 load cell. Suitable for mounting Dynacell™’s 100 N, 250 N, 1 kN, 5 kN, 10 kN and 25 kN to the base of 8870 machines
8000-093
M48 × 2 to M30 × 2 attachment kit
8000-094
M48 × 2 to M20 × 1.5 attachment kit
8000-087
M20 × 1.5 to M20 × 1.5 attachment kit
8000-044
M20 × 1.5 to M30 × 2 attachment kit; this kit is for attaching M30 accessories to M20 load cell or actuator
8000-090
M30 to M30 × 1.5 attachment kit; this kit is for attaching M30 accessories to M30 load cell or actuator
8000-045
M20 × 1.5 to ½ in clevis pin
8000-046
M20 × 1.5 to 16 mm clevis pin
8000-043
M20 × 1.5 to 6 mm clevis pin
8000-120
Attachment kit for low-force Dynacell 2527-130, 2527-131 or 2527-132 to M20 RH female thread
8000-121
Attachment kit for low-force Dynacell 2527-130, 2527-131 or 2527-132 to M30 RH female thread
8000-122
Attachment kit for low-force Dynacell 2527-130, 2527-131 or 2527-132 to M30 LH female thread
8000-101
Attachment kit to provide M20 × 1.5 female thread on 8874 actuator/load cell. Converts 6 × M8 on 75 PCM bolt pattern to M20 × 1.5 central female thread. For attaching single-axis grips and fixtures to 8874 machine.
6.2
Notes: 1. All machines after 8800 H2000 have metric RH threads in actuator, load cell, grips and fixtures 2. Load cells and actuators in the range 5 kN to 25 kN normally have an M20 × 1.5 RH thread
ATTACHMENT KITS FOR LOAD CELLS AND ACTUATORS FROM 50 KN TO 100 KN
Notes: 1. Load cells and actuators of 250 kN normally have an M48 × 2 RH thread
ATTACHMENT KITS FOR LOAD CELLS AND ACTUATORS OF 500 KN Catalog Number
Description
8000-095
M72 × 3 to M72 × 3 attachment kit
8000-096
M72 × 3 to M48 × 2 attachment kit
8000-097
M72 × 3 to M30 × 2 attachment kit
Notes: 1. Load cells and actuators of 500 kN normally have an M72 × 3 RH thread
ATTACHMENT KITS FOR LOAD CELLS AND ACTUATORS OF 1 MN Catalog Number
Description
8000-098
M100 × 4 to M100 × 4 attachment kit
8000-099
M100 × 4 to M72 × 3 attachment kit
8000-100
M100 × 4 to M48 × 2 attachment kit
Notes: 1. Load cells and actuators of 1 M normally have an M100×4 RH thread
Catalog Number
Description
8000-090
M30 × 2 to M30 × 2 attachment kit
8000-091
M30 × 2 to M20 × 1.5 insert kit; this kit is for attaching M20 accessories to M30 load cell or actuator
Catalog Number
Description
8000-108
M30 × 2 to ½ in clevis pin
8000-110
M150 × 4 to M150 × 4 attachment kit
8000-026
Adapter, clevis pin (16 mm) to M30 × 2 RH female thread
8000-111
M150 × 4 to M100 × 4.5 attachment kit
Notes: 1. Load cells and actuators of 50 kN and 100 kN normally have an M30 × 2 RH thread
385
ATTACHMENT KITS FOR LOAD CELLS AND ACTUATORS OF 2.5 MN
Notes: 1. Load cells and actuators of 2.5 MN normally have an M150 × 4 RH thread
