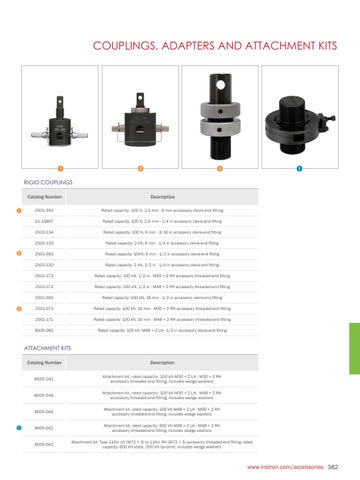

COUPLINGS, ADAPTERS AND ATTACHMENT KITS
1
2
3
1
RIGID COUPLINGS
1
2
3
Catalog Number
Description
2501-350
Rated capacity: 100 N, 2.5 mm - 6 mm accessory clevis-end fitting
S1-13807
Rated capacity: 100 N, 2.5 mm - 1/4 in accessory clevis-end fitting
2501-134
Rated capacity: 100 N, 6 mm - 3/16 in accessory clevis-end fitting
2501-133
Rated capacity: 2 kN, 6 mm - 1/4 in accessory clevis-end fitting
2501-093
Rated capacity: 10kN, 6 mm - 1/2 in accessory clevis-end fitting
2501-120
Rated capacity: 2 kN, 1/2 in - 1/4 in accessory clevis-end fitting
2501-173
Rated capacity: 100 kN, 1/2 in - M30 × 2 RH accessory threaded-end fitting
2501-172
Rated capacity: 100 kN, 1/2 in - M48 × 2 RH accessory threaded-end fitting
2501-092
Rated capacity: 100 kN, 16 mm - 1/2 in accessory clevis-end fitting
2501-073
Rated capacity: 100 kN, 16 mm - M30 × 2 RH accessory threaded-end fitting
2501-171
Rated capacity: 100 kN, 16 mm - M48 × 2 RH accessory threaded-end fitting
8005-062
Rated capacity: 100 kN, M48 × 2 LH - 1/2 in accessory clevis-end fitting
ATTACHMENT KITS
1
Catalog Number
Description
8005-041
Attachment kit, rated capacity: 100 kN M30 × 2 LH - M30 × 2 RH accessory threaded-end fitting; includes wedge washers
8005-045
Attachment kit, rated capacity: 100 kN M30 × 2 LH - M48 × 2 RH accessory threaded-end fitting; includes wedge washers
8005-046
Attachment kit, rated capacity: 100 kN M48 × 2 LH - M30 × 2 RH accessory threaded-end fitting; includes wedge washers
8005-042
Attachment kit, rated capacity: 300 kN M48 × 2 LH - M48 × 2 RH accessory threaded-end fitting; includes wedge washers
8005-043
Attachment kit, Type 11Am LH (M72 × 3) to 11Am RH (M72 × 3) accessory threaded-end fitting; rated capacity: 600 kN static, 500 kN dynamic; includes wedge washers
www.instron.com/accessories 382
