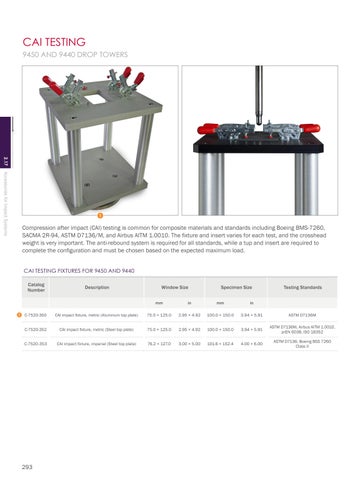

CAI TESTING 9450 AND 9440 DROP TOWERS
2.17
Accessories for Impact Systems
1
Compression after impact (CAI) testing is common for composite materials and standards including Boeing BMS-7260, SACMA 2R-94, ASTM D7136/M, and Airbus AITM 1.0010. The fixture and insert varies for each test, and the crosshead weight is very important. The anti-rebound system is required for all standards, while a tup and insert are required to complete the configuration and must be chosen based on the expected maximum load. CAI TESTING FIXTURES FOR 9450 AND 9440 Catalog Number
1
Description
Window Size
Specimen Size
mm
in
mm
in
Testing Standards
C-7520-350
CAI impact fixture, metric (Aluminum top plate)
75.0 × 125.0
2.95 × 4.92
100.0 × 150.0
3.94 × 5.91
ASTM D7136M
C-7520-352
CAI impact fixture, metric (Steel top plate)
75.0 × 125.0
2.95 × 4.92
100.0 × 150.0
3.94 × 5.91
ASTM D7136M, Airbus AITM 1.0010, prEN 6038, ISO 18352
C-7520-353
CAI impact fixture, imperial (Steel top plate)
76.2 × 127.0
3.00 × 5.00
101.6 × 152.4
4.00 × 6.00
ASTM D7136, Boeing BSS 7260 Class II
293
