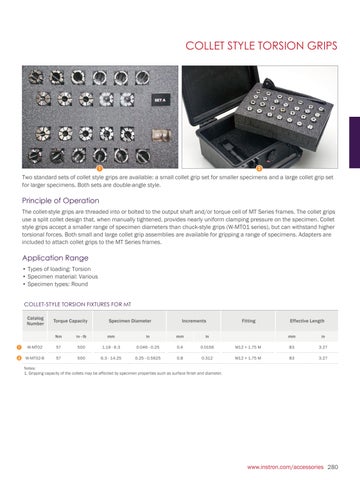

COLLET STYLE TORSION GRIPS
1
2
Two standard sets of collet style grips are available: a small collet grip set for smaller specimens and a large collet grip set for larger specimens. Both sets are double-angle style.
Principle of Operation The collet-style grips are threaded into or bolted to the output shaft and/or torque cell of MT Series frames. The collet grips use a split collet design that, when manually tightened, provides nearly uniform clamping pressure on the specimen. Collet style grips accept a smaller range of specimen diameters than chuck-style grips (W-MT01 series), but can withstand higher torsional forces. Both small and large collet grip assemblies are available for gripping a range of specimens. Adapters are included to attach collet grips to the MT Series frames.
Application Range • Types of loading: Torsion • Specimen material: Various • Specimen types: Round COLLET-STYLE TORSION FIXTURES FOR MT Catalog Number
Torque Capacity
Specimen Diameter
Increments
Nm
in - lb
mm
in
mm
in
Fitting
Effective Length mm
in
1
W-MT02
57
500
1.19 - 6.3
0.046 - 0.25
0.4
0.0156
M12 × 1.75 M
83
3.27
2
W-MT02-B
57
500
6.3 - 14.25
0.25 - 0.5625
0.8
0.312
M12 × 1.75 M
83
3.27
Notes: 1. Gripping capacity of the collets may be affected by specimen properties such as surface finish and diameter.
