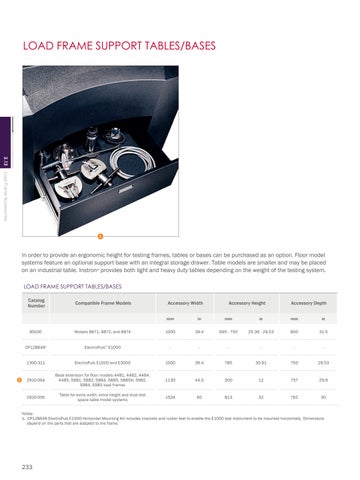

LOAD FRAME SUPPORT TABLES/BASES
2.12
Load Frame Accessories 1
In order to provide an ergonomic height for testing frames, tables or bases can be purchased as an option. Floor model systems feature an optional support base with an integral storage drawer. Table models are smaller and may be placed on an industrial table. Instron® provides both light and heavy duty tables depending on the weight of the testing system. LOAD FRAME SUPPORT TABLES/BASES Catalog Number
1
Compatible Frame Models
Accessory Width
Accessory Height
Accessory Depth
mm
in
mm
in
mm
in
8503C
Models 8871, 8872, and 8874
1000
39.4
695 - 750
25.36 - 29.53
800
31.5
CP1286491
ElectroPuls™ E1000
-
-
-
-
-
-
1300-311
ElectroPuls E1000 and E3000
1000
39.4
785
30.91
750
29.53
2910-064
Base extension for floor models 4481, 4482, 4484, 4485, 5881, 5882, 5884, 5885, 5885H, 5982, 5984, 5985 load frames
1130
44.5
300
12
757
29.8
2910-056
Table for extra width, extra height and dual test space table model systems
1524
60
813
32
762
30
Notes: 1. CP128649 ElectroPuls E1000 Horizontal Mounting Kit includes brackets and rocker feet to enable the E1000 test instrument to be mounted horizontally. Dimensions depend on the parts that are adapted to the frame.
