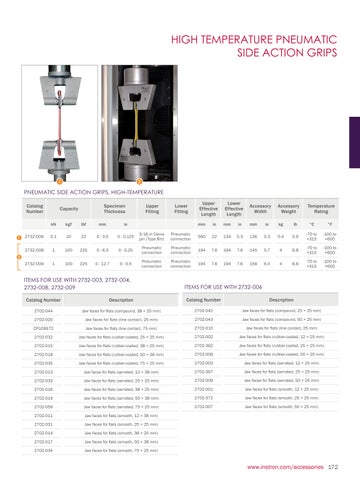

HIGH TEMPERATURE PNEUMATIC SIDE ACTION GRIPS
1
2
PNEUMATIC SIDE ACTION GRIPS, HIGH-TEMPERATURE Catalog Number
1
Specimen Thickness
Capacity
Upper Fitting
Lower Fitting
Upper Effective Length
Lower Effective Length
Accessory Width
Accessory Weight
Temperature Rating
mm
in
mm
in
mm
in
kg
lb
°C
°F
kN
kgf
lbf
mm
in
2732-006
0.1
10
22
0 - 3.5
0 - 0.125
3/16 in Clevis pin (Type Bm)
Pneumatic connection
560
22
134
5.3
136
5.3
0.4
0.9
-70 to +315
-100 to +600
2732-008
1
100
225
0 - 6.3
0 - 0.25
Pneumatic connection
Pneumatic connection
194
7.6
194
7.6
145
5.7
4
8.8
-70 to +315
-100 to +600
2732-009
1
100
225
0 - 12.7
0 - 0.5
Pneumatic connection
Pneumatic connection
194
7.6
194
7.6
158
6.0
4
8.8
-70 to +315
-100 to +600
2
ITEMS FOR USE WITH 2732-003, 2732-004, 2732-008, 2732-009
ITEMS FOR USE WITH 2732-006
Catalog Number
Description
Catalog Number
Description
2702-044
Jaw faces for flats (compound, 38 × 25 mm)
2702-042
Jaw faces for flats (compound, 25 × 25 mm)
2702-020
Jaw faces for flats (line contact, 25 mm)
2702-043
Jaw faces for flats (compound, 50 × 25 mm)
CP109572
Jaw faces for flats (line contact, 75 mm)
2702-010
Jaw faces for flats (line contact, 25 mm)
2702-032
Jaw faces for flats (rubber-coated, 25 × 25 mm)
2702-002
Jaw faces for flats (rubber-coated, 12 × 25 mm)
2702-015
Jaw faces for flats (rubber-coated, 38 × 25 mm)
2702-362
Jaw faces for flats (rubber-coated, 25 × 25 mm)
2702-018
Jaw faces for flats (rubber-coated, 50 × 38 mm)
2702-008
Jaw faces for flats (rubber-coated, 50 × 25 mm)
2702-035
Jaw faces for flats (rubber-coated, 75 × 25 mm)
2702-003
Jaw faces for flats (serrated, 12 × 25 mm)
2702-013
Jaw faces for flats (serrated, 12 × 38 mm)
2702-367
Jaw faces for flats (serrated, 25 × 25 mm)
2702-033
Jaw faces for flats (serrated, 25 × 25 mm)
2702-009
Jaw faces for flats (serrated, 50 × 25 mm)
2702-016
Jaw faces for flats (serrated, 38 × 25 mm)
2702-001
Jaw faces for flats (smooth, 12 × 25 mm)
2702-019
Jaw faces for flats (serrated, 50 × 38 mm)
2702-372
Jaw faces for flats (smooth, 25 × 25 mm)
2702-059
Jaw faces for flats (serrated, 75 × 25 mm)
2702-007
Jaw faces for flats (smooth, 50 × 25 mm)
2702-011
Jaw faces for flats (smooth, 12 × 38 mm)
2702-031
Jaw faces for flats (smooth, 25 × 25 mm)
2702-014
Jaw faces for flats (smooth, 38 × 25 mm)
2702-017
Jaw faces for flats (smooth, 50 × 38 mm)
2702-034
Jaw faces for flats (smooth, 75 × 25 mm)
www.instron.com/accessories 172
