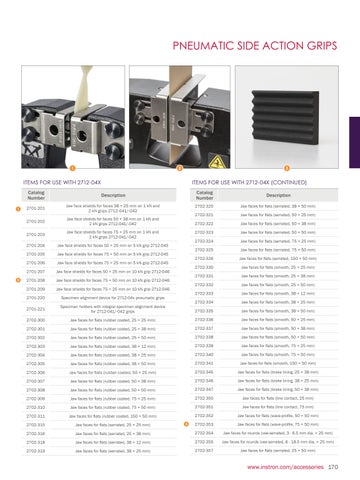

PNEUMATIC SIDE ACTION GRIPS
1
2
3
ITEMS FOR USE WITH 2712-04X
1
2
ITEMS FOR USE WITH 2712-04X (CONTINUED)
Catalog Number
Description
2701-201
Jaw face shields for faces 38 × 25 mm on 1 kN and 2 kN grips 2712-041/-042
2701-202
Jaw face shields for faces 50 × 38 mm on 1 kN and 2 kN grips 2712-041/-042
2701-203
Jaw face shields for faces 75 × 25 mm on 1 kN and 2 kN grips 2712-041/-042
2701-204
Jaw face shields for faces 50 × 25 mm on 5 kN grip 2712-045
2701-205
Jaw face shields for faces 75 × 50 mm on 5 kN grip 2712-045
2701-206
Jaw face shields for faces 75 × 25 mm on 5 kN grip 2712-045
2701-207
Jaw face shields for faces 50 × 25 mm on 10 kN grip 2712-046
2701-208
Jaw face shields for faces 75 × 50 mm on 10 kN grip 2712-046
2701-209
Jaw face shields for faces 75 × 25 mm on 10 kN grip 2712-046
2701-220
Specimen alignment device for 2712-04x pneumatic grips
2701-221
Specimen holders with integral specimen alignment device for 2712-041/-042 grips
2702-300
Catalog Number
Description
2702-320
Jaw faces for flats (serrated, 38 × 50 mm)
2702-321
Jaw faces for flats (serrated, 50 × 25 mm)
2702-322
Jaw faces for flats (serrated, 50 × 38 mm)
2702-323
Jaw faces for flats (serrated, 50 × 50 mm)
2702-324
Jaw faces for flats (serrated, 75 × 25 mm)
2702-325
Jaw faces for flats (serrated, 75 × 50 mm)
2702-326
Jaw faces for flats (serrated, 150 × 50 mm)
2702-330
Jaw faces for flats (smooth, 25 × 25 mm)
2702-331
Jaw faces for flats (smooth, 25 × 38 mm)
2702-332
Jaw faces for flats (smooth, 25 × 50 mm)
2702-333
Jaw faces for flats (smooth, 38 × 12 mm)
2702-334
Jaw faces for flats (smooth, 38 × 25 mm)
2702-335
Jaw faces for flats (smooth, 38 × 50 mm)
Jaw faces for flats (rubber coated, 25 × 25 mm)
2702-336
Jaw faces for flats (smooth, 50 × 25 mm)
2702-301
Jaw faces for flats (rubber coated, 25 × 38 mm)
2702-337
Jaw faces for flats (smooth, 50 × 38 mm)
2702-302
Jaw faces for flats (rubber coated, 25 × 50 mm)
2702-338
Jaw faces for flats (smooth, 50 × 50 mm)
2702-303
Jaw faces for flats (rubber coated, 38 × 12 mm)
2702-339
Jaw faces for flats (smooth, 75 × 25 mm)
2702-304
Jaw faces for flats (rubber coated, 38 × 25 mm)
2702-340
Jaw faces for flats (smooth, 75 × 50 mm)
2702-305
Jaw faces for flats (rubber coated, 38 × 50 mm)
2702-341
Jaw faces for flats (smooth, 150 × 50 mm)
2702-306
Jaw faces for flats (rubber coated, 50 × 25 mm)
2702-345
Jaw faces for flats (brake lining, 25 × 38 mm)
2702-307
Jaw faces for flats (rubber coated, 50 × 38 mm)
2702-346
Jaw faces for flats (brake lining, 38 × 25 mm)
2702-308
Jaw faces for flats (rubber coated, 50 × 50 mm)
2702-347
Jaw faces for flats (brake lining, 50 × 38 mm)
2702-309
Jaw faces for flats (rubber coated, 75 × 25 mm)
2702-350
Jaw faces for flats (line contact, 25 mm)
2702-310
Jaw faces for flats (rubber coated, 75 × 50 mm)
2702-351
Jaw faces for flats (line contact, 75 mm)
2702-311
Jaw faces for flats (rubber coated, 150 × 50 mm)
2702-352
Jaw faces for flats (wave-profile, 50 × 50 mm)
2702-315
Jaw faces for flats (serrated, 25 × 25 mm)
2702-353
Jaw faces for flats (wave-profile, 75 × 50 mm)
2702-316
Jaw faces for flats (serrated, 25 × 38 mm)
2702-354
Jaw faces for rounds (vee-serrated, 3 - 6.5 mm dia. × 25 mm)
2702-318
Jaw faces for flats (serrated, 38 × 12 mm)
2702-355
Jaw faces for rounds (vee-serrated, 6 - 18.5 mm dia. × 25 mm)
2702-319
Jaw faces for flats (serrated, 38 × 25 mm)
2702-357
Jaw faces for flats (serrated, 25 × 50 mm)
3
www.instron.com/accessories 170
