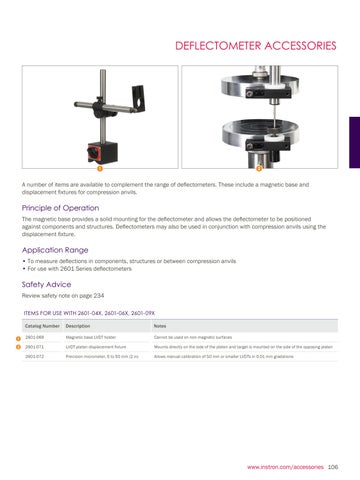

DEFLECTOMETER ACCESSORIES
1
2
A number of items are available to complement the range of deflectometers. These include a magnetic base and displacement fixtures for compression anvils.
Principle of Operation The magnetic base provides a solid mounting for the deflectometer and allows the deflectometer to be positioned against components and structures. Deflectometers may also be used in conjunction with compression anvils using the displacement fixture.
Application Range • To measure deflections in components, structures or between compression anvils • For use with 2601 Series deflectometers
Safety Advice Review safety note on page 234 ITEMS FOR USE WITH 2601-04X, 2601-06X, 2601-09X Catalog Number
Description
Notes
1
2601-069
Magnetic base LVDT holder
Cannot be used on non-magnetic surfaces
2
2601-071
LVDT platen displacement fixture
Mounts directly on the side of the platen and target is mounted on the side of the opposing platen
2601-072
Precision micrometer, 0 to 50 mm (2 in)
Allows manual calibration of 50 mm or smaller LVDTs in 0.01 mm gradations
www.instron.com/accessories 106
