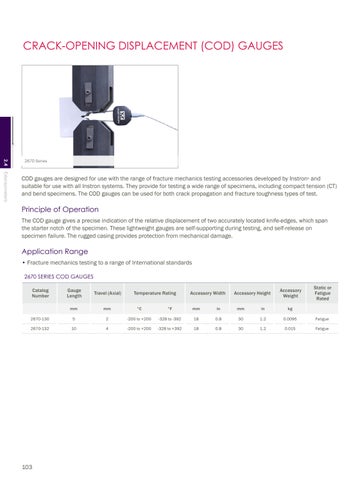

CRACK-OPENING DISPLACEMENT (COD) GAUGES
2.4
2670 Series
Extensometers
COD gauges are designed for use with the range of fracture mechanics testing accessories developed by Instron and suitable for use with all Instron systems. They provide for testing a wide range of specimens, including compact tension (CT) and bend specimens. The COD gauges can be used for both crack propagation and fracture toughness types of test. ®
Principle of Operation The COD gauge gives a precise indication of the relative displacement of two accurately located knife-edges, which span the starter notch of the specimen. These lightweight gauges are self-supporting during testing, and self-release on specimen failure. The rugged casing provides protection from mechanical damage.
Application Range • Fracture mechanics testing to a range of International standards 2670 SERIES COD GAUGES Catalog Number
Gauge Length
Travel (Axial)
mm 2670-130 2670-132
103
Accessory Weight
Static or Fatigue Rated
Temperature Rating
Accessory Width
Accessory Height
mm
°C
°F
mm
in
mm
in
kg
5
2
-200 to +200
-328 to -392
18
0.8
30
1.2
0.0095
Fatigue
10
4
-200 to +200
-328 to +392
18
0.8
30
1.2
0.015
Fatigue
