SAFETY FIRST - SAFETY TIPS SAFETY FIRST

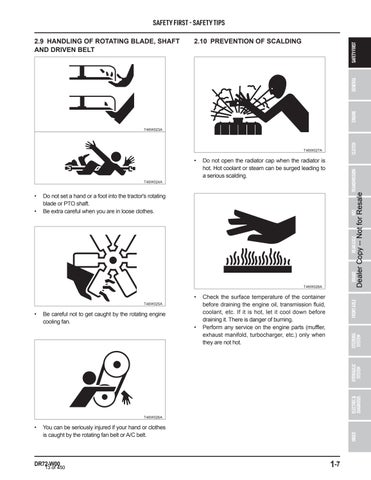

2.10 PREVENTION OF SCALDING
ENGINE
GENERAL
2.9 HANDLING OF ROTATING BLADE, SHAFT AND DRIVEN BELT
CLUTCH
T46W023A
T46W027A
Do not open the radiator cap when the radiator is hot. Hot coolant or steam can be surged leading to a serious scalding.
TRANSMISSION TRANSMI SSION
•
REAR BRAKE AXLE
REAR HSTAXLE
•
Do not set a hand or a foot into the tractor's rotating blade or PTO shaft. Be extra careful when you are in loose clothes.
TRANSMI HST
•
Dealer Copy -- Not forSSION Resale
T46W024A
T46W028A
Be careful not to get caught by the rotating engine cooling fan.
HYDRAULIC ELECTRIC & DIAGNOSIS SYSTEM
HYDRAULIC STEERING SYSTEM
•
FRONT BRAKE AXLE
•
Check the surface temperature of the container before draining the engine oil, transmission fluid, coolant, etc. If it is hot, let it cool down before draining it. There is danger of burning. Perform any service on the engine parts (muffler, exhaust manifold, turbocharger, etc.) only when they are not hot.
FRONT STEERING AXLE SYSTEM
• T46W025A
•
A/C AND INDEX HEATER
T46W026A
You can be seriously injured if your hand or clothes is caught by the rotating fan belt or A/C belt.
DR72-W00
13 of 450
1-7
