REAR AXLE - DISASSEMBLY, SERVICING AND ASSEMBLY

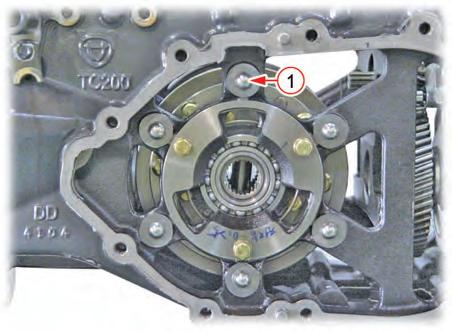

4. Seat the steel ball (1) onto the groove of the transmission case firmly and install the spring (2). Then, align the brake cam (3) and groove with the steel ball and pull the spring (2) to fix it. (When installing the steel ball, apply a sufficient amount of grease to the groove.)

Remarks

BRAKE

• Install the brake cam plate marked with (R) to the right side.

BRAKE - SPECIFICATION/BASIC OPERATING PRINCIPLE

1. SPECIFICATIONS

1.1 GENERAL SPECIFICATIONS

Brake type..................... Wet Multi-Plate Disc

Brake pedal freeplay 20 ~ 30 mm (0.787 ~ 1.181 in)

Allowable tolerance of freeplay between LH and RH brake pedals ........... below 5 mm below 0.197 in

Brake disc

Min. allowable thickness 4.2 mm (New disc: 4.6 ~ 4.8 mm)

0.165 in (New disc: 1.811 ~ 0.189 in)

Brake plate Min. allowable thickness 2.1 mm (New disc: 2.54 ~ 2.66 mm) 0.083 in (New disc: 0.100 ~ 0.105 in)

Brake rod mounting
