REAR AXLE - DISASSEMBLY, SERVICING AND ASSEMBLY

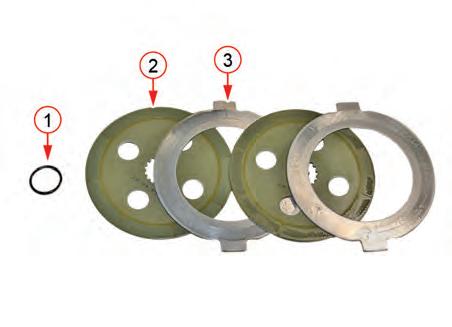

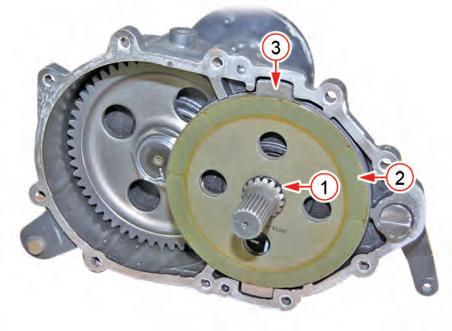

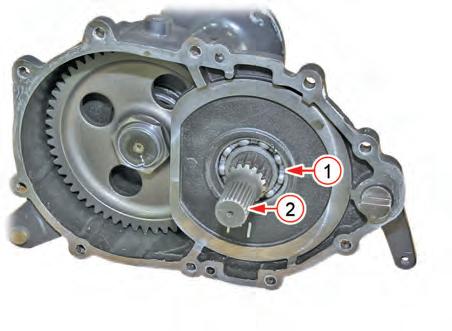

5. Support the rear axle case with a hoist and unscrew the mounting bolt (1) and nut of the rear axle case. Tap the rear axle case gently with a rubber hammer to push it out slightly. Then, hold and pull it out.

(M12 bolt: 11 EA, nut: 2 EA) (When reinstalling the rear axle case, apply sealant (Loctite® 5060 or equivalent) to its mating surface.)

Mounting bolt, nut tightening torque...........102.9 ~ 117.6 N•m

10.5 ~ 12 kgf-m

75.6 ~ 86.4 ft-lb

Stud bolt tightening torque...... ... 34.3 ~ 49.0 N•m

3.5 ~ 5.0 kgf-m

25.2 ~ 36.0 ft-lb
