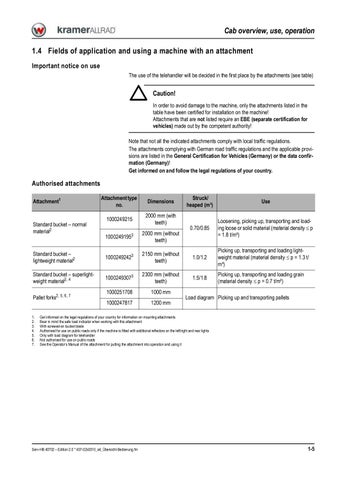

Cab overview, use, operation 1.4 Fields of application and using a machine with an attachment Important notice on use The use of the telehandler will be decided in the first place by the attachments (see table)
Caution! In order to avoid damage to the machine, only the attachments listed in the table have been certified for installation on the machine! Attachments that are not listed require an EBE (separate certification for vehicles) made out by the competent authority! Note that not all the indicated attachments comply with local traffic regulations. The attachments complying with German road traffic regulations and the applicable provisions are listed in the General Certification for Vehicles (Germany) or the data confirmation (Germany)! Get informed on and follow the legal regulations of your country.
Authorised attachments Attachment1
Standard bucket – normal material2
Attachment type no.
Dimensions
1000249215
2000 mm (with teeth)
Struck/ heaped (m³)
Use
0.70/0.85
Loosening, picking up, transporting and loading loose or solid material (material density p = 1.8 t/m³)
10002491953
2000 mm (without teeth)
Standard bucket – lightweight material2
10002492423
2150 mm (without teeth)
1.0/1.2
Picking up, transporting and loading lightweight material (material density p = 1.3 t/ m³)
Standard bucket – superlightweight material2, 4
10002493073
2300 mm (without teeth)
1.5/1.8
Picking up, transporting and loading grain (material density p = 0.7 t/m³)
1000251708
1000 mm
1000247817
1200 mm
Pallet forks2, 5, 6, 7 1. 2. 3. 4. 5. 6. 7.
Load diagram Picking up and transporting pallets
Get informed on the legal regulations of your country for information on mounting attachments Bear in mind the safe load indicator when working with this attachment With screwed-on bucket blade Authorised for use on public roads only if the machine is fitted with additional reflectors on the left/right and rear lights Only with load diagram for telehandler Not authorised for use on public roads See the Operator’s Manual of the attachment for putting the attachment into operation and using it
