The main fuse box is located in the engine compartment in front of the radiator
Fuse Rated current (A) Protected circuit
F025 80 A Preheating-time control relay F026 50 A Starting relay F027 30 A Fuel preheater (option) F028 80 A Main fuse – board F029 80 A Main fuse

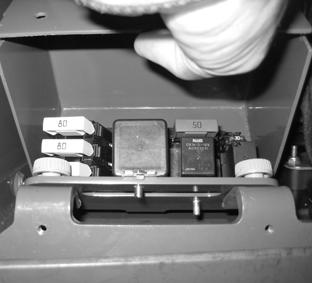

Fig. 30: Main fuse box
Relay no. Protected circuit
K005 Preheating time lag relay K007 Start high current relay K029 Excess fuel, minus compensation switching relay
Electric units
Description Power
Alternator 14 V 80 A Starter 12 V 2.0 kW Battery 12 V 74 Ah
