Operation of Autohitch trailer coupling

111 112

A

B 123 124

G

H O

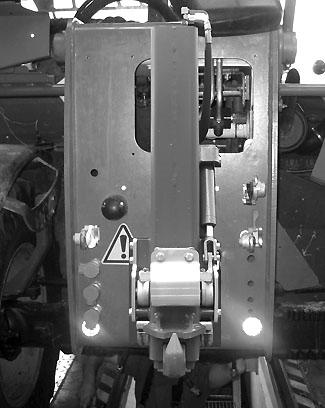

Fig. 21: Opening the Autohitch trailer coupling

Notice!

Switch off the additional control circuit before putting the Autohitch trailer coupling into operation! Press switch 111 to position A

The Autohitch trailer coupling is operated via tip switch 112 (switch console on left) and switch 124 (switch console on the right next to the seat) as follows: ☞ Unlocking and opening the trailer coupling lock •Press switch 123 to position A •Press tip switch 112 to position B and at the same time, press switch 123 in the direction of the arrow A ➥ Towing pin H moves fully upward to the final position and automatically unlocks the safety lock •Press tip switch 112 to position B and at the same time, press switch 123 in the direction of the arrow A ➥ Towing pin H moves downward ☞ Coupling the trailer onto the trailer coupling •Use the mirror (option) to carefully approach to the trailer until the towing pin appears below the eyelet of the trailer drawbar •Press tip switch 112 to position B and at the same time, press switch 123 in the direction of the arrow A until the trailer coupling audibly encounters hydraulic resistance ➥ Towing pin H moves upward to the final position (arrow G) ➥ Visually check that the trailer is securely locked ☞ Uncoupling the trailer from the trailer coupling •Press switch 123 to position A •Press tip switch 112 to position B and at the same time, press switch 123 in the direction of the arrow A ➥ Towing pin H moves fully upward to the final position and automatically unlocks the safety lock •Press tip switch 112 to position B and at the same time, press switch 123 in the direction of the arrow A •Towing pin H moves downward
