3.8 Refuelling

A

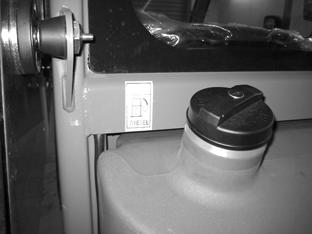

Fig. 35: Fuel filler inlet Filler inlet A of the fuel tank is located on the left in driving direction, behind the cab.

Danger!

Do not refuel in closed rooms – danger of fire and suffocation!

☞ Before refuelling: •Lower the telescopic boom to the ground •Stop the diesel engine and remove the ignition key •Clean the area around the filler opening before opening the filler cap •Open the filler cap and fill the fuel tank through the filling screen

Notice!

Fuel may be drained and the fuel tank may be cleaned only by an authorised workshop!

3.9 Checking/cleaning the additional fuel filter (water separator, option)

108

Drain the condensation water in the additional fuel filter at the latest if indicator light 108 on the instrument panel comes on –see Maintenance plan (overview) on page3-5. ☞ Proceed as follows: •Lower the telescopic boom to the ground • Stop the diesel engine and remove the ignition key • Apply the parking brake • Place a container to collect the fuel • Open drain cock B on the additional fuel filter and drain the condensation water • Close drain cock B • Start the diesel engine and check the additional fuel filter for leaks

B

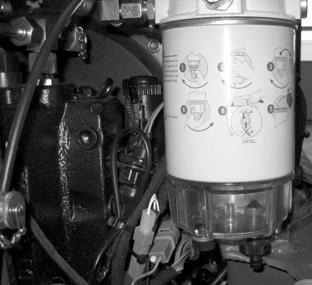

Fig. 36: Checking the additional fuel filter

Environment!

Use a suitable container to collect the fuel as it drains and dispose of it in an environmentally friendly manner!
