Trailer coupling (option) Autohitch coupling (option

1.6 Type labels and component numbers

Explanation of “Book” symbol

The “Book” symbol on the signs and type labels indicates that the Operator’s Manual contains more detailed information and explanations.

Fig. 2: Explanation of “Book” symbol

Serial number

A

C B

1 2 3 4 5

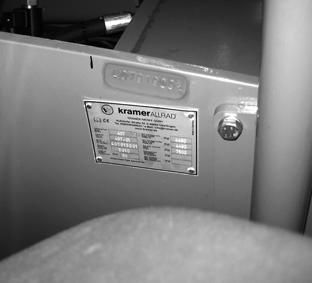

Fig. 3: Type label location

Cab number

B

6 7 8 9 10

The serial number A is stamped on the machine frame (next to the mudguard attachment, at the front right). It is also located on the type label B. The CE mark C on the type label means that the machine meets the requirements of the Machine Directive (2006/42 EC) and that the conformity procedure has been performed.

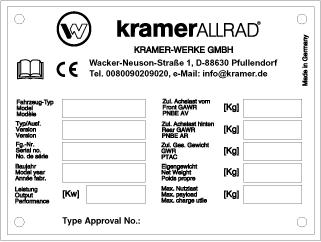

Type label indications (example)

1 Machine model 407 2 Version 407-02 3 Serial no. 407 02 00032 4 Year of construction 2010 5 Output (kW) 50 6 Front gross axle weight rating (kg) 4480 7 Rear gross axle weight rating (kg) 4480 8 Gross weight rating (kg) 7500 9 Dead weight (kg) –10Maximum payload (kg) –

Other data: –seechapter 6 “Technische Daten” on page6-1

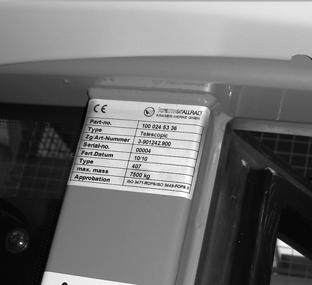

The type label (arrow) is located in the cab, on the top right frame member.

Fig. 4: Cab type label
