Reflectors (2 x on rear end of machine, 2 x on rear light bracket

Engine number

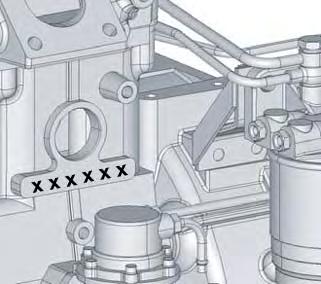

Fig. 5: Diesel engine number The type label is located on the cylinder-head cover (diesel engine). The number is also stamped on the side of the engine block.

Example: Deutz engine

• Engine model = TD 2009 L04 • Engine no. = 9 113 500

Variable displacement pump number

Fig. 6: Hydraulic pump type label The type label (arrow) is located on the variable displacement pump housing (flanged on the diesel engine).
