Towing the machine

Danger!

In order to avoid danger of accidents, the towing vehicle must have enough tractive power and be fitted with a safe brake system. ☞ It may be advisable to order a recovery service or authorised staff to tow the machine away ☞ If the diesel engine is defective, always use a towing bar for towing ➥Eye hooks for towing the machine –see Machine outside view on page1-2 ☞ If possible, run the diesel engine at idling speed when towing the machine ☞ Tow away the machine from the danger zone only after you have opened the HP valves

Once towing is over

A Notice!

Steering and braking requires greater effort if the diesel engine of the towed machine breaks down! • Towing distance => 300 m max. • Towing speed => 6 kph max.

☞ Enable the variable displacement pump again after towing •Screw in and tighten both HP valves A with a torque wrench (wrench size 22mm) ➥ Torque 85Nm •Check the drive for correct operation

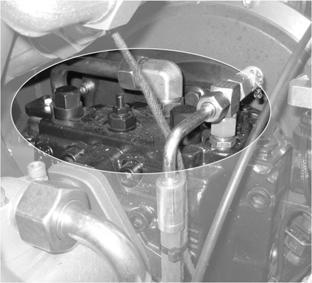

Fig. 27: Enabling the variable displacement pump
