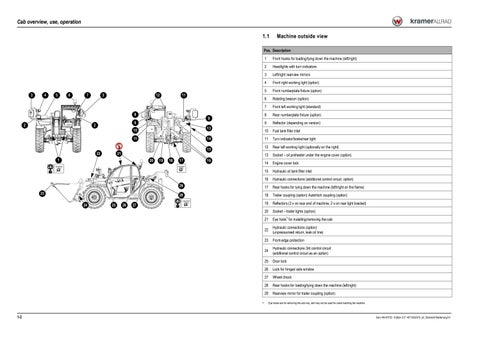

Cab overview, use, operation 1.1
Machine outside view
Pos. Description
3
4
5
6
7
3
12
1
Front hooks for loading/tying down the machine (left/right)
2
Headlights with turn indicators
3
Left/right rearview mirrors
4
Front right working light (option)
5
Front numberplate fixture (option)
6
Rotating beacon (option)
7
Front left working light (standard)
8
Rear numberplate fixture (option)
9
Reflector (depending on version)
10
Fuel tank filler inlet
11
Turn indicator/brake/rear light
12
Rear left working light (optionally on the right)
13
Socket – oil preheater under the engine cover (option)
14
Engine cover lock
15
Hydraulic oil tank filler inlet
16
Hydraulic connections (additional control circuit, option)
29
17
Rear hooks for tying down the machine (left/right on the frame)
28
18
Trailer coupling (option) Autohitch coupling (option)
19
Reflectors (2 x on rear end of machine, 2 x on rear light bracket)
20
Socket – trailer lights (option)
21
Eye hook1 for installing/removing the cab
22
Hydraulic connections (option) (unpressurised return, leak oil line)
23
Front-edge protection
24
Hydraulic connections 3rd control circuit (additional control circuit as an option)
25
Door lock
26
Lock for hinged side window
27
Wheel chock
28
Rear hooks for loading/tying down the machine (left/right)
29
Rearview mirror for trailer coupling (option)
11
8 2
9
9
2
13
10 11
22
14 15
21
1
20
23 24
25
26
19
18
17
16
27
1.
1-2
Eye hooks are for removing the cab only, and may not be used for crane handling the machine
