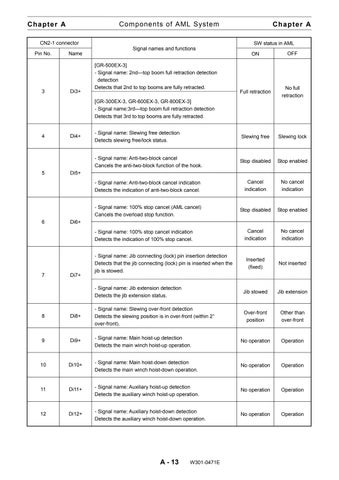

Components of AML System
Cha pte r A CN2-1 connector Pin No.
3
Name
Di3+
Signal names and functions
Cha pte r A SW status in AML ON
OFF
Full retraction
No full retraction
- Signal name: Slewing free detection Detects slewing free/lock status.
Slewing free
Slewing lock
- Signal name: Anti-two-block cancel Cancels the anti-two-block function of the hook.
Stop disabled
Stop enabled
- Signal name: Anti-two-block cancel indication Detects the indication of anti-two-block cancel.
Cancel indication
No cancel indication
- Signal name: 100% stop cancel (AML cancel) Cancels the overload stop function.
Stop disabled
Stop enabled
- Signal name: 100% stop cancel indication Detects the indication of 100% stop cancel.
Cancel indication
No cancel indication
- Signal name: Jib connecting (lock) pin insertion detection Detects that the jib connecting (lock) pin is inserted when the jib is stowed.
Inserted (fixed)
Not inserted
- Signal name: Jib extension detection Detects the jib extension status.
Jib stowed
Jib extension
[GR-500EX-3] - Signal name: 2nd—top boom full retraction detection detection Detects that 2nd to top booms are fully retracted. [GR-300EX-3, GR-600EX-3, GR-800EX-3] - Signal name:3rd—top boom full retraction detection Detects that 3rd to top booms are fully retracted.
4
5
6
7
Di4+
Di5+
Di6+
Di7+
8
Di8+
- Signal name: Slewing over-front detection Detects the slewing position is in over-front (within 2° over-front).
Over-front position
Other than over-front
9
Di9+
- Signal name: Main hoist-up detection Detects the main winch hoist-up operation.
No operation
Operation
10
Di10+
- Signal name: Main hoist-down detection Detects the main winch hoist-down operation.
No operation
Operation
11
Di11+
- Signal name: Auxiliary hoist-up detection Detects the auxiliary winch hoist-up operation.
No operation
Operation
12
Di12+
- Signal name: Auxiliary hoist-down detection Detects the auxiliary winch hoist-down operation.
No operation
Operation
A - 13
W301-0471E
