Adjustment mode

D - 1 1 Fuel Monitor E/G

11.1

Purpose

This function selects the type of the installed engine (E/G).

11.2 Screen Description

11.2.1

Method of Displaying Screen

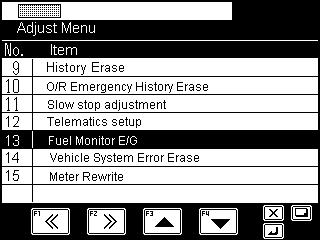

When the screen is changed from the maintenance screen to adjustment screen, "Fuel Monitor E/G" is displayed on the last row. Refer to Fig. 11.1

11.2.2

Description

When the screen is changed to "Fuel Monitor E/G", the screen shown in Fig. 11.2 is displayed.

Three E/G types in total can be selected in the example shown in Fig. 11.2.

D - 1 2

Vehicle System Error Erase

12.1 Purpose

This function erases the error history of ECU in the vehicle system. This function aims to save the time for erasing the error history during recovery and other operations by allowing AML to erase the error history of ECU in the vehicle system.

12.2 Applicable Machine

Machines with the following (1) to (3) set are applicable.

(1): DCU2

(2): VCU

(3): Engine ECU (Mitsubishi engine: displayed, Cumminsengine: no displayed)

(4): ALL (machines with (1) to (3) all set)

12 3 Screen Description

12 3.1 Method of Displaying Screen

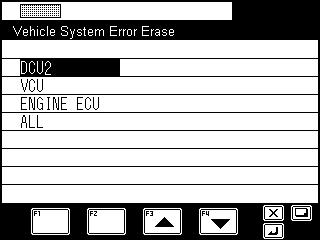

When the activation conditions are satisfied and the screen is changed from the maintenance screen to adjustment screen, "Vehicle System Error Erase" is displayed. Move the cursor to "Vehicle System Error Erase", and press the < > key (set) to display the error history erase screen.

12 3.2 Description

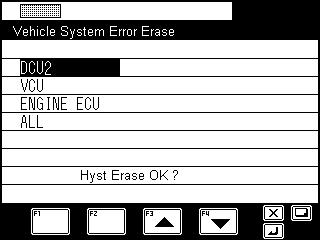

Move the cursor by < > key (scroll up) and < > key (scroll down) to the machine whose error history is requested to be erased, and press the < > key (set). "Hyst Erase OK?" is displayed.

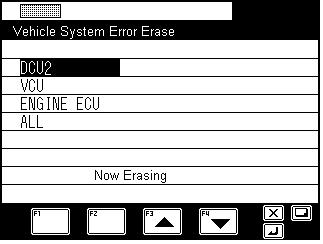

When the < > key (set) is pressed again, "Now Erasing" is displayed on AML Then, according to the result, "Erase Finish!" or "Erase Failure" is displayed.

On the item selection screen or history erasing screen "Now Erasing", press the < > key (cancel) to go back to the maintenance main menu.

On the history erase confirmation screen "Hyst Erase OK?", history erase complete screen "Erase Finish! ", or history erase failure screen "Erase Failure", press the < > key (cancel) to go back to the item selection screen.

* When "ALL" is selected, the erase all machines with data set among the applicable machines (refer to section 12.2.).

Only when the responses of erase complete are received from all the machines, AML recognizes that the error history erase is completed.

D - 1 3 Meter Rewrite

13.1 Purpose

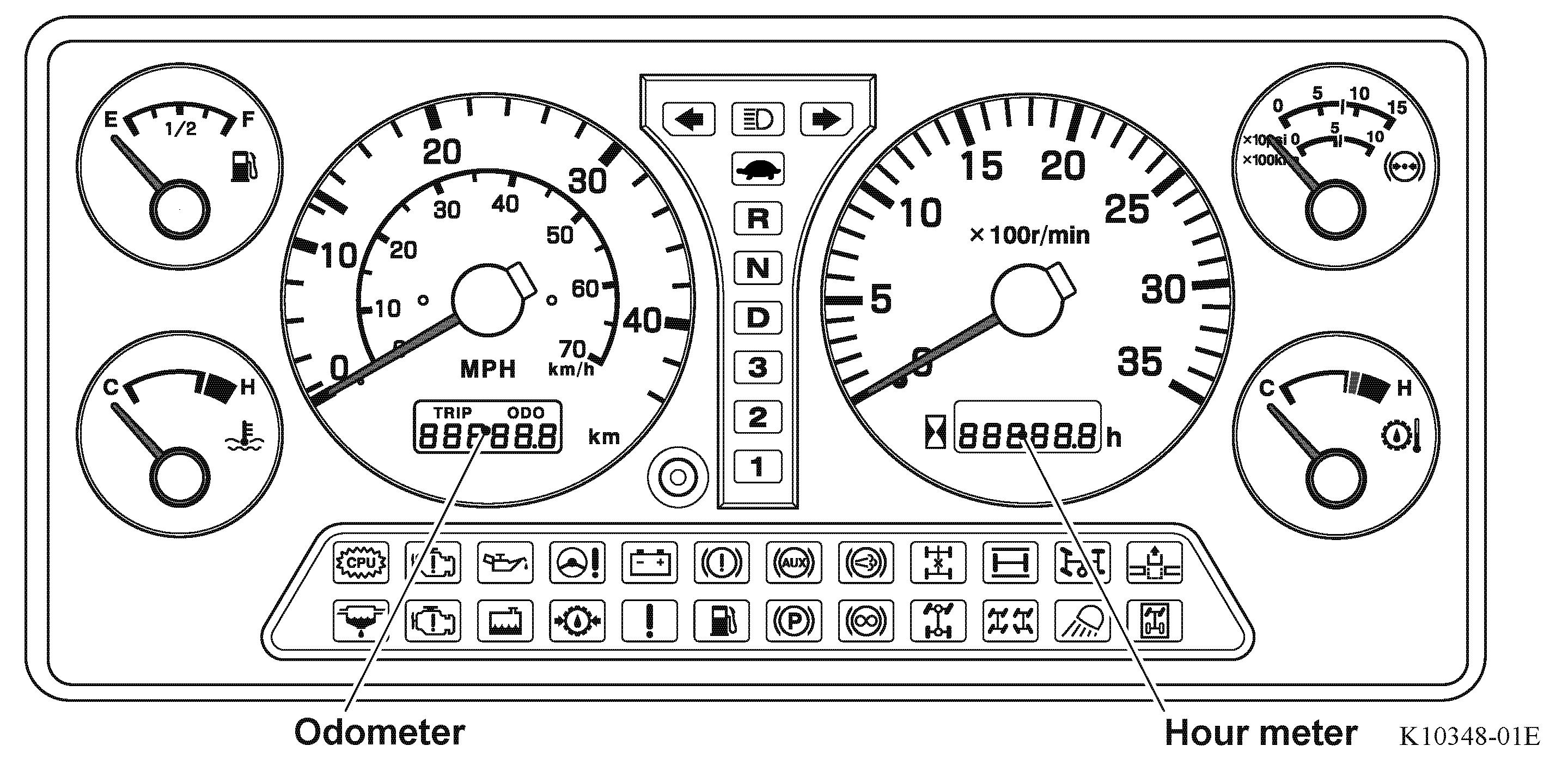

This function aims to reset the hourmeter value and odometer value to the values before the replacem ent when the CMA (Combination Meter Assy) is replaced.

13 2 Restriction (Rewrite Conditions for CMA)

Rewriting the meter values to CMA is applicable only when the following conditions are all satisfied.

(1) Rewriting is performed in 120 seconds after the ING is turned ON.

(2) CMA accumulated value < Command value for rewriting.

(3) The meter value displayed on CMA is not in the error state " ".

(4) Rewriting is possible only once due to the restriction of CMA.

13.3 Screen Description

13 3.1 Method of Displaying Screen

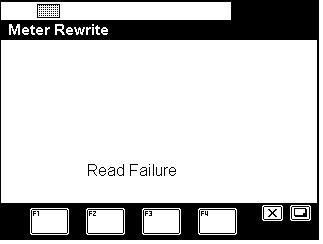

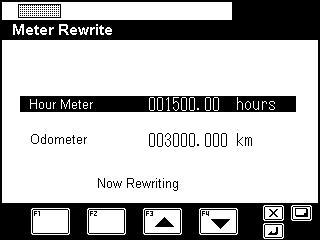

When the activation conditions are satisfied and the screen is changed from the maintenance screen to adjustment screen, "Meter Rewrite" is displayed. Move the cursor to "Meter Rewrite", and press the < > key (set) to display the meter rewrite screen.
