Maintenance Mode

2.8.7 DCU2 check, Do check

Displays the status of DCU2 Do.

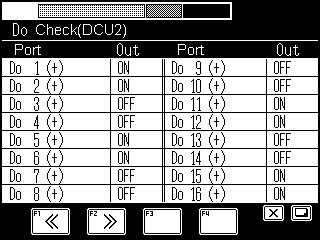

In the VC check selection menu of Fig. 2.8.1, select "Do Check (DCU2)", and press the < > key (set) to display the Do check (DCU2) screen shown in Fig. 2.8.5.

Pressing the < > key (previous page) or the < > key (next page) changes the pages.

To go back to the DCU2 check selection menu, press the < > key (cancel).

<Description of display contents>

Port :Do 1 to Do 32, KEY_OFF, OE: Do port of DCU2

ON : Output ON (CAN received data "1") OFF : Output OFF (CAN received data "0") - (hyphen): No signal received.
