Maintenance Mode

C - 2 Individual Main Menu Function s

2.1 ROM ID check

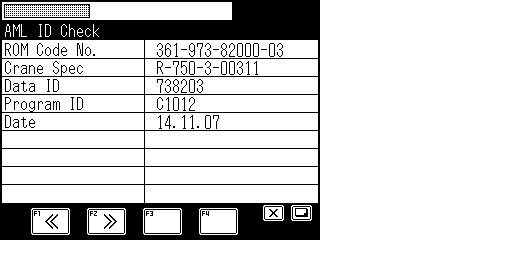

In the maintenance main menu of Fig. 1.3.1, select "ID Code Check," and press the < > key to display the AML ID check screen shown in Fig. 2.1.1.

Pressing the < > key quits the menu, and the display returns to the maintenance main menu. Displayed items are listed below.

When the transmitter STM-D is connected, pressing the < > key or the < > key displays the connected device ID check screen shown in Fig. 2.1.2.

- ROM Code No.

- Crane Specification code

- Data ID

- Program ID

- Making date of data. (From left, year, month, day.)

- DCU2 ID

- VCU ID

- VCU Sub ID
