Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
5

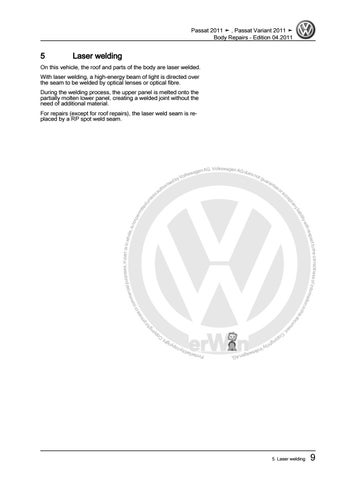

Laser welding
On this vehicle, the roof and parts of the body are laser welded. With laser welding, a high-energy beam of light is directed over the seam to be welded by optical lenses or optical fibre. During the welding process, the upper panel is melted onto the partially molten lower panel, creating a welded joint without the need of additional material.
AG. Volkswagen AG d agen oes ksw not l o gu yV b ara d e nte is r o eo h ut ra a c s s
ht rig py Co t.
r fo ng
rrectne s s o f i t to the co n form spec atio h re n wit i n thi sd o c um en
urposes, in part or in wh ole, cial p is n mer m ot p o c erm or e t a itte v i r d p
ility ab y li an pt ce
un le
For repairs (except for roof repairs), the laser weld seam is re‐ placed by a RP spot weld seam.
5. Laser welding
9
