5.4 Foam treating roof side member

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

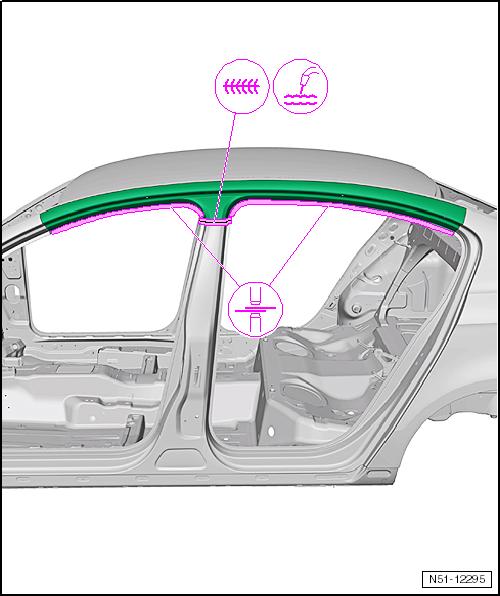

– Weld in B-pillar parting cut, MIG solder seam or SG continuous weld seam are permitted.

Note

Both weld symbols are shown in the figure.

– Weld roof side member to door apertures, RP spot weld seam (inverter). 5.4 Foam treating roof side member

5.4.1 Treating with foam

– Heat 2K structural foam cartridge in an approx. 60 °C water bath for 20 minutes.

Protected by copyright . Copying fo pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1 - 2K structural foam cartridge – Open cap 2 - Static mixer – Cut of the front section of the cone only. 3 - Extension hose 4 - Textile adhesive tape Note 5 - Adapter Note 6 - Union nut r – Connect static mixer -2to 2K structural foam cartridge -1- using union nut.

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

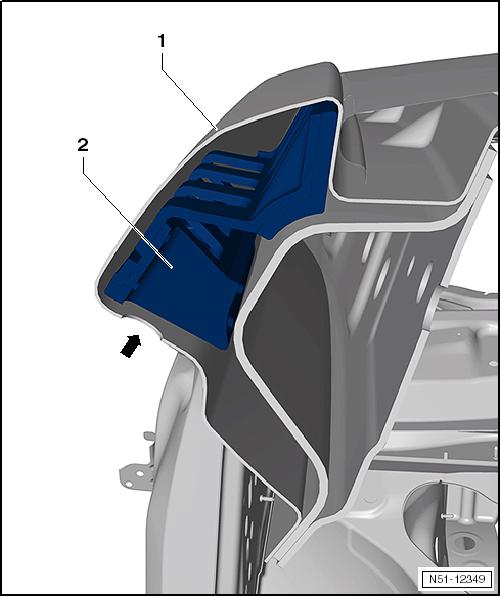

– Inject structural foam through opening for blind rivet nuts -arrow- in roof -1- using pneumatic cartridge gun -V.A.G 1761/1- and static mixer.

– Then seal opening with a blind rivet nut.
