16 Renewing rear side member reinforcement

RO: 51 48 55 53

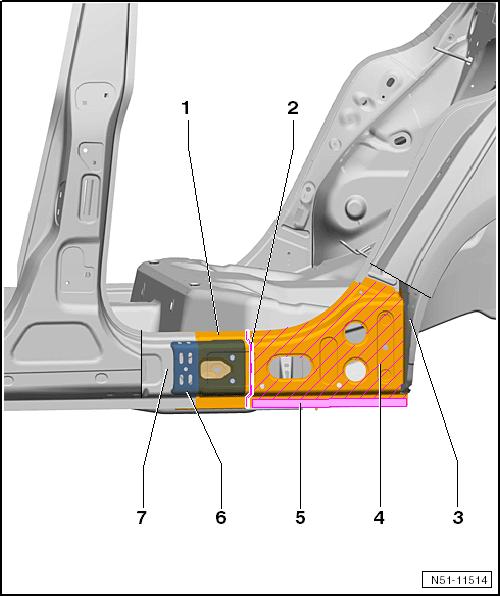

Protected by copyright . Copying fo pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 16 Renewing rear side member rein‐forcement WARNING Observe safety notes! s Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Side member already removed ⇒ page 229 . r 1 - Remaining section of rear side member reinforcement (remains) 2 - Cutting point 3 - Outer wheel housing liner 4 - Rear side member rein‐forcement 5 - Bonded section 6 - Web plate ❑ Only shown for clarity, must not be damaged. 7 - B-pillar reinforcement Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
