o8 Renewing D-pillar reinforcement - part section

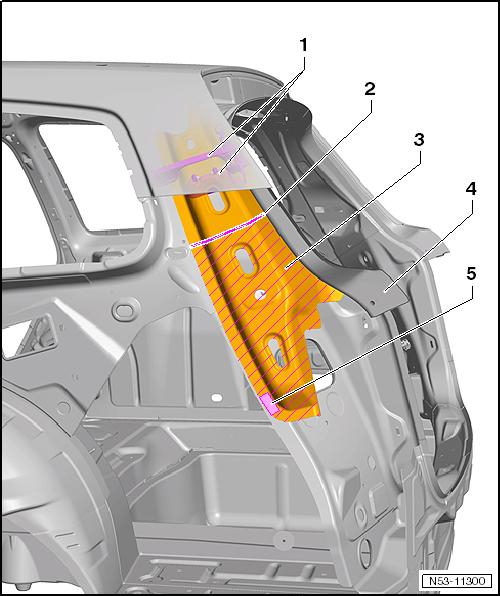

Protected by copyright . Copying fo pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 53 30 55 50 8 Renewing D-pillar reinforcement part section Includes: sealing channel - part section WARNING u Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. r Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Side panel already removed ⇒ page 342 . • Tail light mounting already removed ⇒ page 291 . 1 - Moulded foam elements 2 - Cutting point 3 - D-pillar reinforcement Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011 4 - Sealing channel 5 - Bonded area
