3.3 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

– Remove remaining material. – Remove remaining adhesive completely and grind bonded surface back to bare metal.

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 280 .

3.3.1 Preparing new part

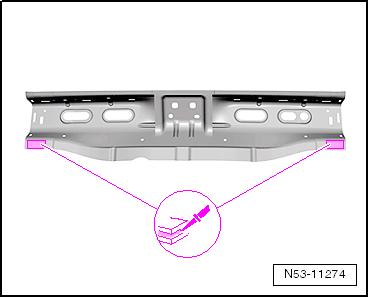

New part ♦ Lock carrier

Protected by copyright . Copying for pivate or co merci al pur o s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Apply 2K body adhesive -D 180 KD3 A2- to areas bonded in the factory. p 3.3.2 Welding in m – Adapt new part with vehicle standing on its wheels and fix in place. – Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

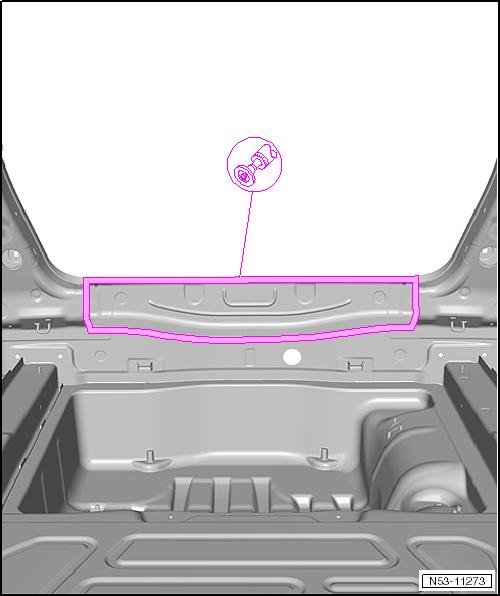

– Weld in lock carrier, RP spot weld seam and SG staggered continuous weld seam or MIG staggered solder seam.
