t15 Renewing front side member reinforcement

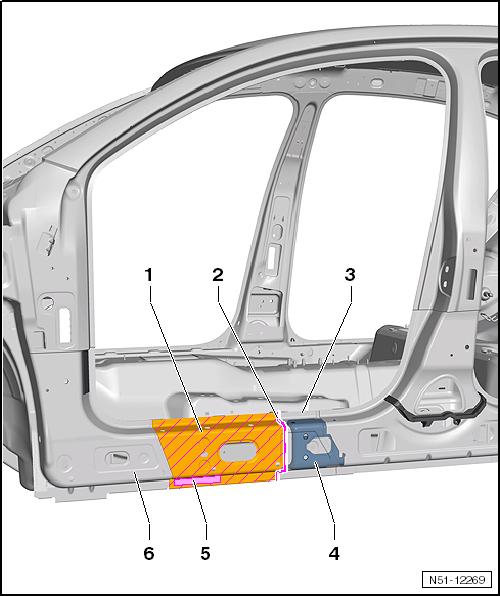

Protected by copyright . Copying fo pivate or comm rci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 51 48 55 50 15 Renewing front side member rein‐forcement WARNING Observe safety notes! s Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Side member already removed ⇒ page 229 . e 1 - Front side member rein‐forcement r 2 - Cutting point 3 - Remaining section of front side member reinforcement (remains) 4 - Web plate 5 - Bonded area 6 - A-pillar reinforcement Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
