14 Renewing outer wheel housing liner (Variant

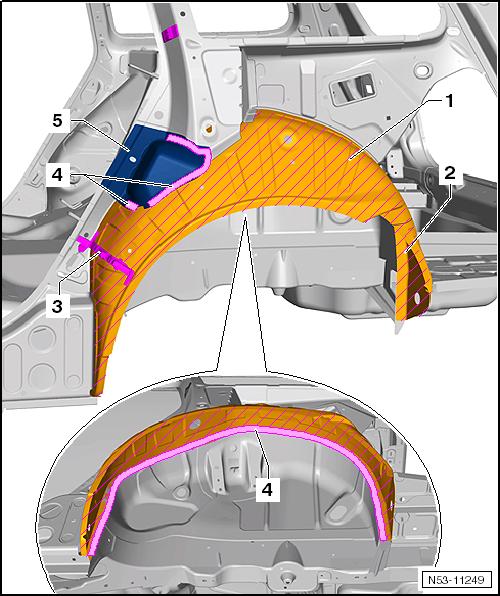

Protected by copyright . Copying for pivate or co merci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 53 68 55 60 14 Renewing outer wheel housing liner (Variant) Includes: lock reinforcement WARNING u Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. m Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Side panel already removed ⇒ page 342 . 1 - Wheel housing liner 2 - Reinforcing plate 3 - Moulded foam element 4 - Bonded areas Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

5 - Lock reinforcement
