t9 Renewing inner D-pillar

RO: 53 30 55 52

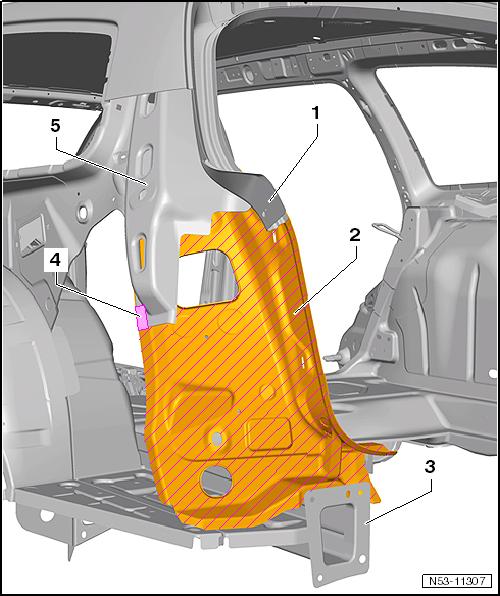

Protected by copyright . Copying fo pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 9 Renewing inner D-pillar WARNING Observe safety notes! u Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Side panel already removed ⇒ page 342 . • Tail light mounting already removed ⇒ page 291 . • Cross panel already removed ⇒ page 273 r 1 - Sealing channel 2 - Inner D-pillar 3 - Rear longitudinal member 4 - Bonded area 5 - D-pillar reinforcement

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
