17.3 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

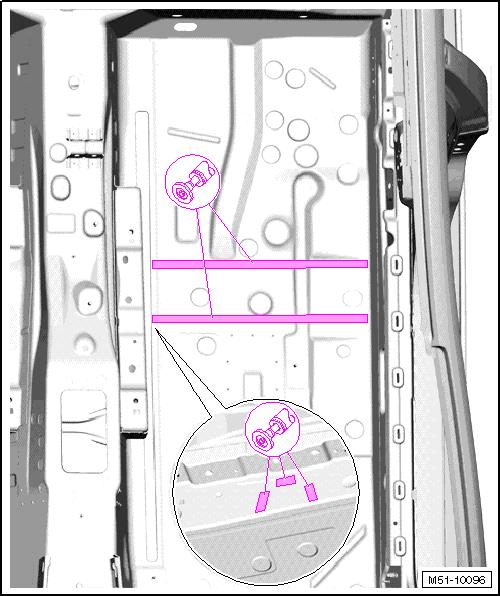

– Remove remaining material. – Remove remaining adhesive completely and grind bonded surface back to bare metal.

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 250 .

17.3.1 Preparing new part

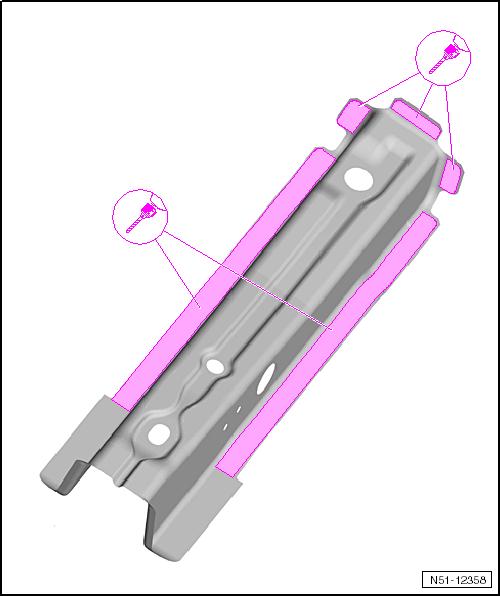

New part ♦ Seat mounting ♦ 2K body adhesive -D 180 KD3 A2-

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG.

– Drill holes for SG plug weld seam (8 mm ∅).

17.3.2 Welding in

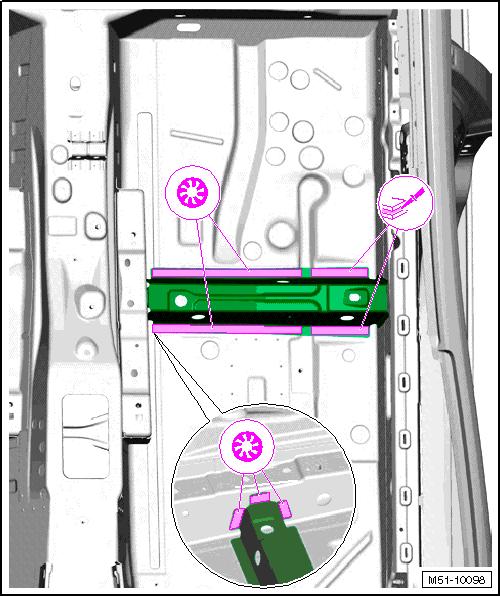

– Adapt new part and fix in position. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Check fit to outer mounting for seat cross member and seat. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

– Apply 2K body adhesive -D 180 KD3 A2- to areas bonded in the factory. – Weld seat cross member to inner mounting for seat cross member and to floor panel, SG plug weld seam. – Install outer cross member for seat ⇒ page 263 .
