1.3 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

– Remove remaining material.

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 31 .

1.3.1 Preparing new part

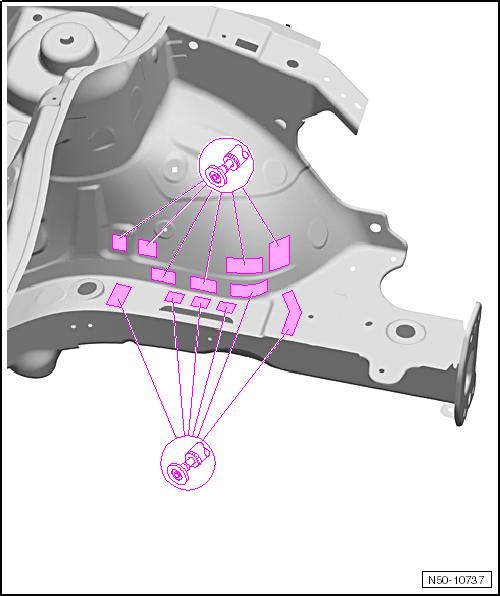

New part ♦ Left engine console – Drill holes for SG plug weld seam (8 mm ∅).

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1.3.2 Welding in – Adapt new part with vehicle positioned on alignment bracket set and fix in place.

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

– Weld in console, SG plug weld seam and RP spot weld seam.
