9 Renewing A-pillar

merci al pur po s e s , i

Protected by copyright . Copying for piva e or co

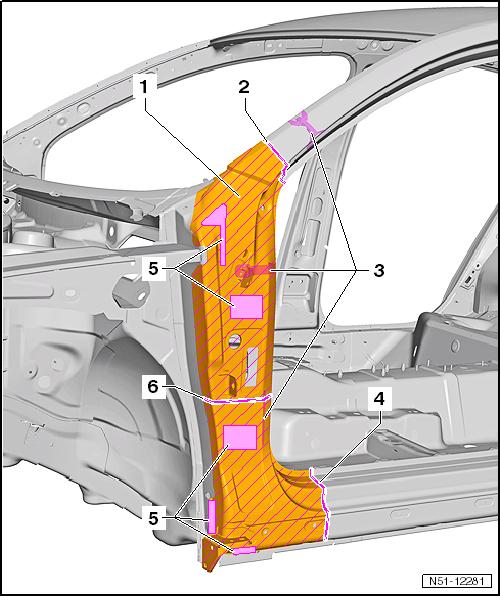

p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 51 37 55 00 9 Renewing A-pillar WARNING n Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. m Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Upper outer longitudinal member already removed ⇒ page 50 . t1 - A-pillar 2 - Upper parting cut 3 - Moulded foam elements 4 - Parting cut for side member Note Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011 5 - Bonded areas

6 - Parting cut for partial re‐placement Partial renewal Partial replacement of A-pillar is possible using this parting cut.
