4 Renewing roof - Variant with panorama sliding sunroof

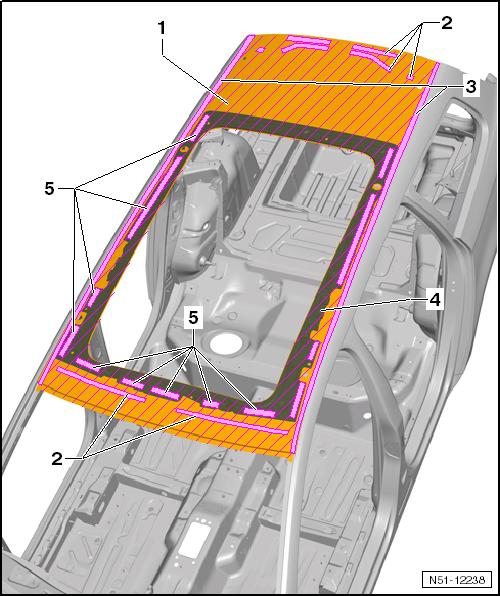

Protected by copyright . Copying fo pivate or co merci al pur po s e , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 51 03 55 13 4 Renewing roof - Variant with panora‐ma sliding sunroof WARNING Observe safety notes! s Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes 1 - Roof m 2 - Bonded areas (roof cross member) 3 - Laser solder seam r 4 - Reinforcing frame (panora‐ma sliding sunroof) 5 - Bonded areas (reinforcing frame)

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
