– Remove remaining material. – Remove remaining adhesive completely and grind bonded surface back to bare metal.

13.3 Installing

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 224 .

13.3.1 Welding in

New part ♦ Inner B-pillar ♦ 2K body adhesive -D 180 KD3 A2-

Note

♦ ♦ Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. New part must be welded in within 90 minutes or adhesion of adhesive will be impaired. Before installing inner B-pillar, adapt B-pillar reinforcement to fit to assure the welding period in the bonded areas is kept as short as possible.

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

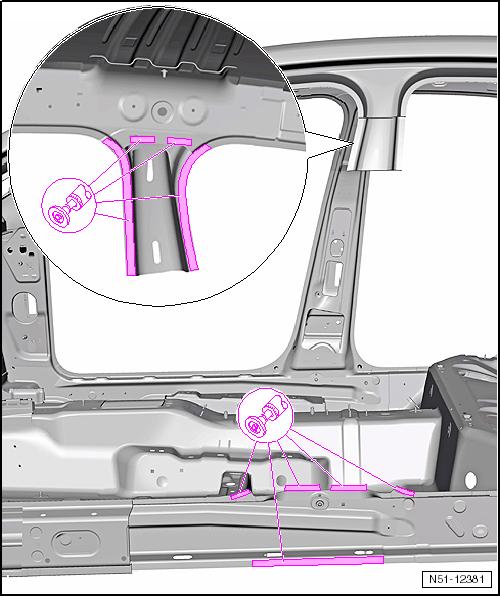

– Apply 2K body adhesive -D 180 KD3 A2- in the areas indica‐ted.

– Adapt new part with vehicle positioned on alignment bracket set and fix in place. – Check fit with bolt-on parts.

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

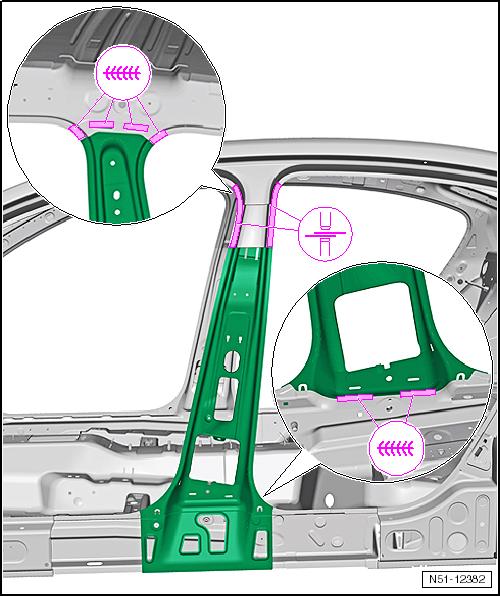

– Weld in new part, SG continuous weld seam and RP spot weld seam (inverter).

Note

♦ The joint to inner side member is welded when installing B-pillar reinforcing. ♦ The B-pillar reinforcement must be welded in within 90 minutes or adhesion of adhesive to inner B-pillar will be impaired.

– Install B-pillar reinforcement ⇒ page 213 .
