5.3 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG.

– Remove remaining material.

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 292 .

5.3.1 Preparing new part

New part ♦ Tail light mounting Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

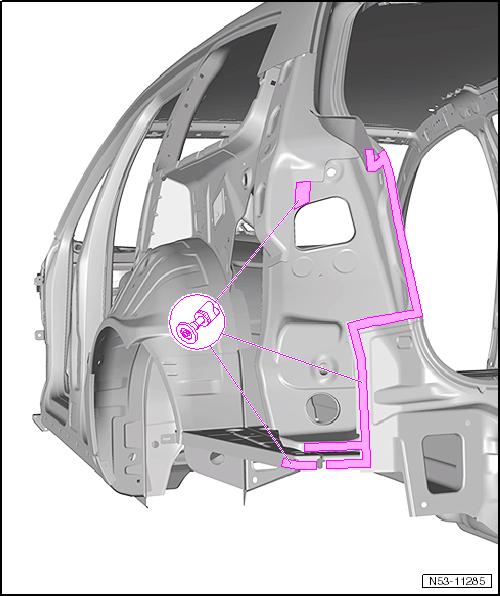

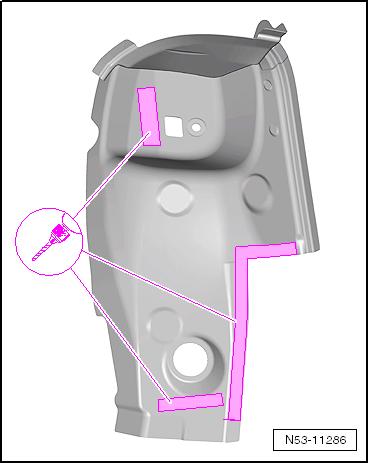

Protected by copyright . Co ying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Drill holes for SG plug weld seam (8 mm ∅). 5.3.2 Welding in p – Adapt new part with vehicle standing on its wheels or align‐ment bracket set and fix in position. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

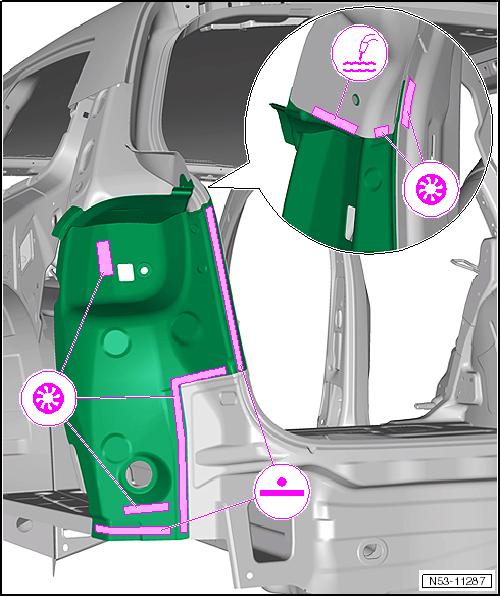

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Check fit with bolt-on parts. – Weld in new part, SG plug weld seam and RP spot weld seam. – Weld in remaining joints to sealing channel, MIG continuous weld seam. – Install side panel for Variant, ⇒ page 345 . Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
