4.2 Removing

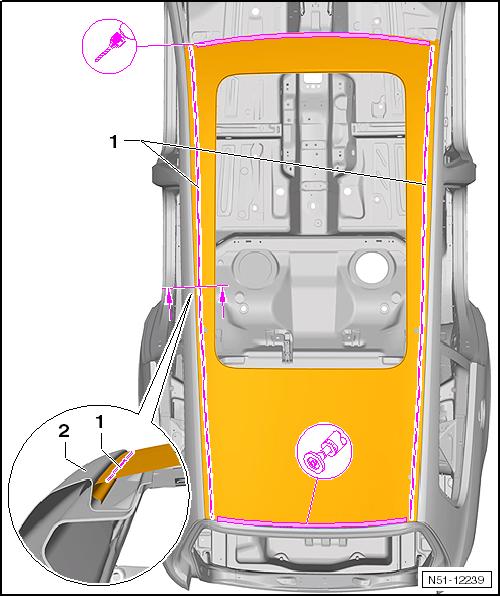

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 4.2 Removing Note ♦ Apply textile adhesive tape on left and right roof members parallel to laser solder seams. This reduces danger of damage and contamination during repairs. ♦ When separating, ensure sufficient distance of to roof member -2- is kept, to assure it is not damaged during repairs. ♦ When making parting cuts -1-, ensure that the panels lying behind are not damaged. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

– Separate original joint to front and rear roof cross members. – Separate bonded joints to front and rear roof cross members. – Roughly cut roof out parallel to laser solder seams.

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

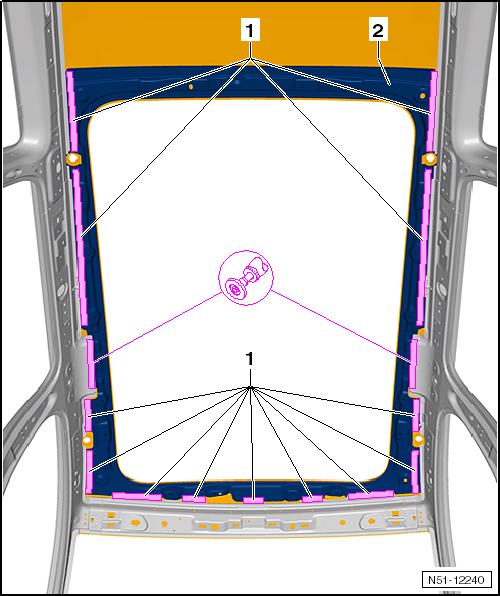

– Release bonded joints -1- from reinforcing frame -2-. – Separate original joint to inner side panel on left and right.

Note

♦ Roof side member -1- must not be damaged when removing residual remains of roof -2-. ♦ Use flap or felt discs only, do not use cutting disks or rough grinding disks.
