12 Renewing side panel (Variant) - part section

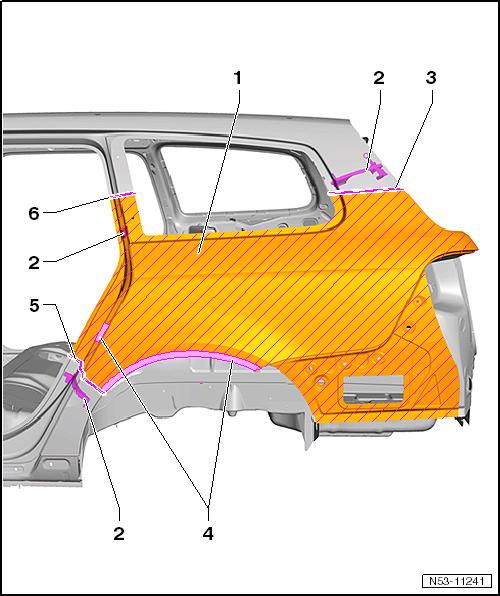

Protected by copyright . Copying for piva e or commer i al pur po s s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 53 55 55 60 12 Renewing side panel (Variant) - part section WARNING e Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. c Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes t 1 - Side panel 2 - Moulded foam elements 3 - Parting cut for D-pillar 4 - Bonded area 5 - Parting cut to side member 6 - Parting cut for C-pillar Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
