16.3 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG.

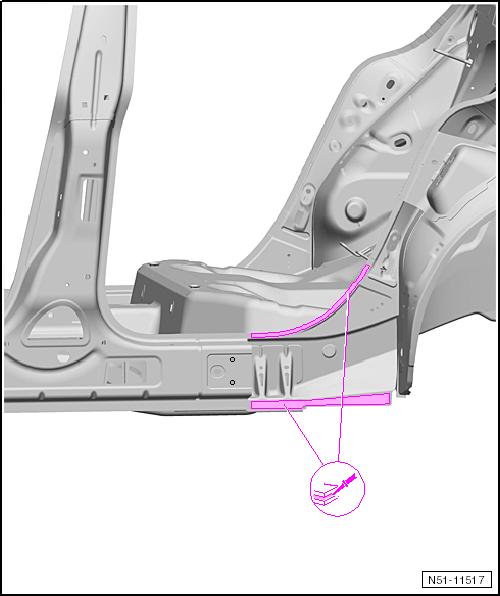

– Remove remaining material. – Remove remaining adhesive completely and grind bonded surface back to bare metal.

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 246 .

16.3.1 Preparing new part

New part ♦ Rear side member reinforcement

♦ 2K body adhesive -D 180 KD3 A2Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

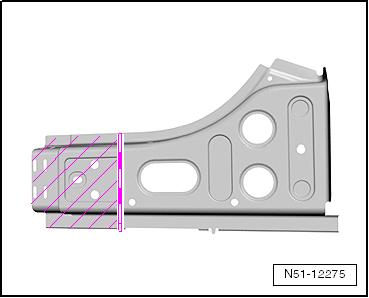

Protected by copyright . Copying fo pivate or commerci al pur o s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Transfer parting cut to new part and cut out. p 16.3.2 Welding in New part Note r The new part must be welded in within 90 minutes, or adhesion of adhesive will be impaired. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Apply 2K body adhesive -D 180 KD3 A2- to area indicated. – Adapt new part with vehicle positioned on alignment bracket set and fix in place. – Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

– Weld in rear side member reinforcement, SG continuous weld seam and RP spot weld seam. – Install side member ⇒ page 232 .
