5 Renewing roof side member

RO: 51 05 55 50

r po s e s , i

Protected by copyright . Copyin for piva e or commerci al p

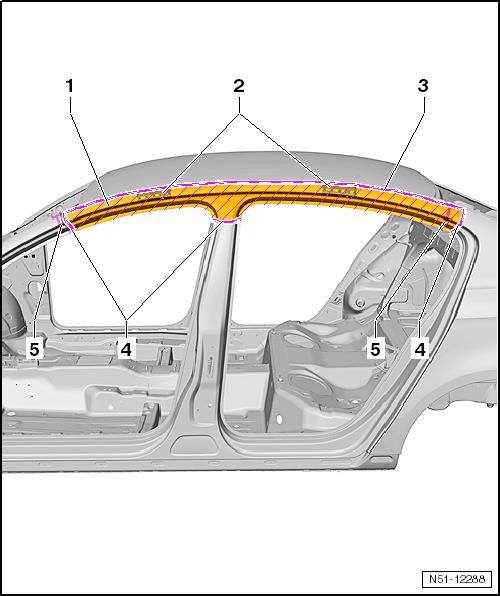

p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 5 Renewing roof side member WARNING n Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. u Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes 1 - Roof member t 2 - Reinforcing (roof carrier) 3 - Roof cut line g4 - Cut line at pillars 5 - Moulded foam element

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
