5.1 Tools

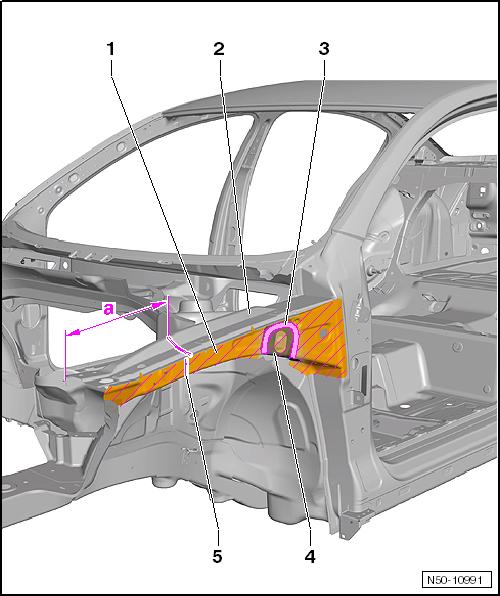

Protected by copyright . Copying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1 - Front outer longitudinal member 2 - Front inner longitudinal member 3 - Bonded area 4 - Aperture to plenum cham‐ber Cut out together with ⇒ Item 1 (page 49) . u 5 - Parting cut for partial re‐placement A partial replacement can also be made with the specified parting cut. Dimension -a- = 270 mm

Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

Note

♦ The use of different types and different thicknesses of steel requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly. ♦ The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒ ServiceNet, Workshop Equip‐ment, EH catalogue, Workshop equipment, Body and paint‐work .
