3.3 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011

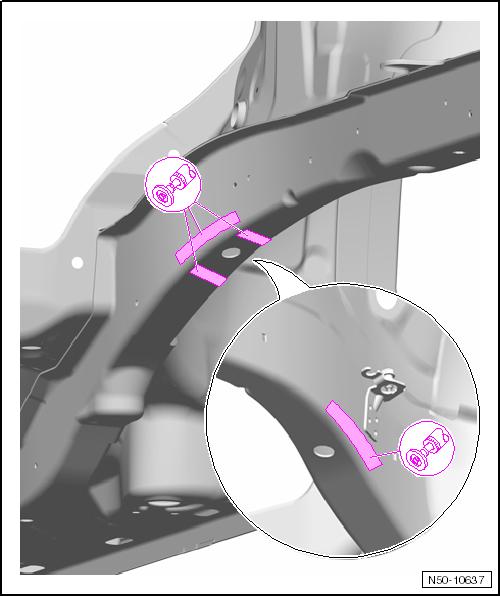

– Remove remaining material.

Note

Only welding units authorised by Volkswagen AG may be used ⇒ page 40 .

3.3.1 Preparing new part

New part ♦ Retaining bracket for subframe (parts designation: subframe retaining bracket)

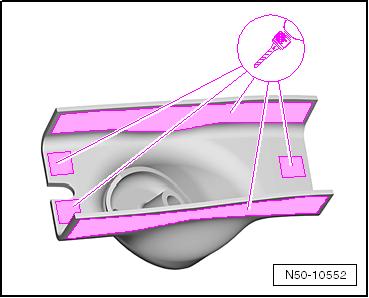

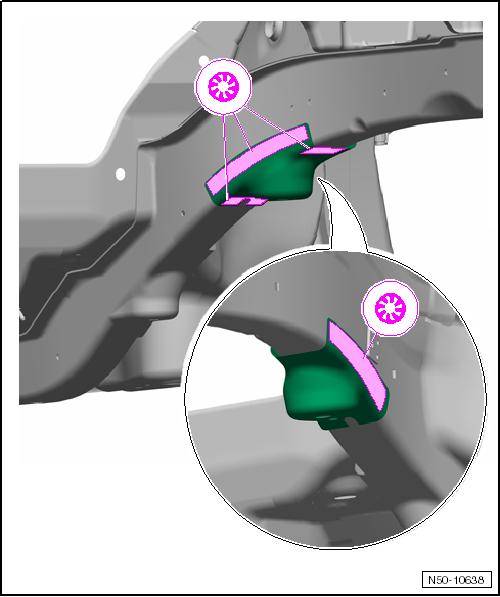

Protected by copyright . Copying for pivate or commer i al pur o s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. – Drill holes for SG plug weld seam (8 mm ∅). p 3.3.2 Welding in c – Adapt new part with vehicle positioned on alignment bracket set and fix in place. – Weld in new part, SG plug weld seam. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
