6 Renewing C-pillar reinforcement

r po s e s , i r commerci al p Protected by copyright . Copying for pivate

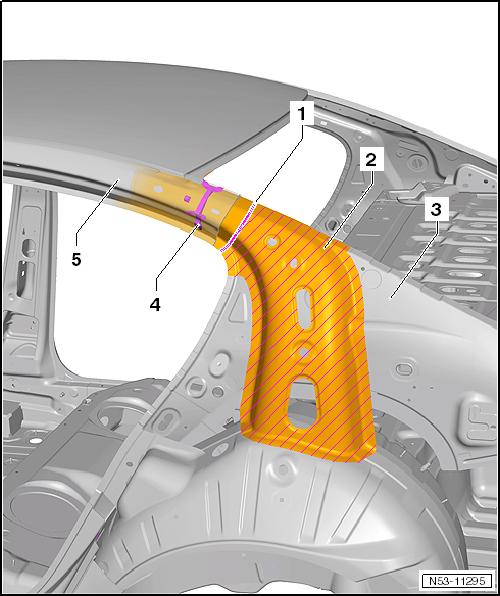

p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 53 29 55 50 6 Renewing C-pillar reinforcement WARNING n Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. u Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Side panel already removed ⇒ page 332 . o1 - Cutting point 2 - C-pillar reinforcement 3 - Inner side panel 4 - Moulded foam element 5 - Side panel Part section removed. Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
