11 Renewing side panel - part section

r po s e s , i

Protected by copyright . Copying for pivate or commerci al p

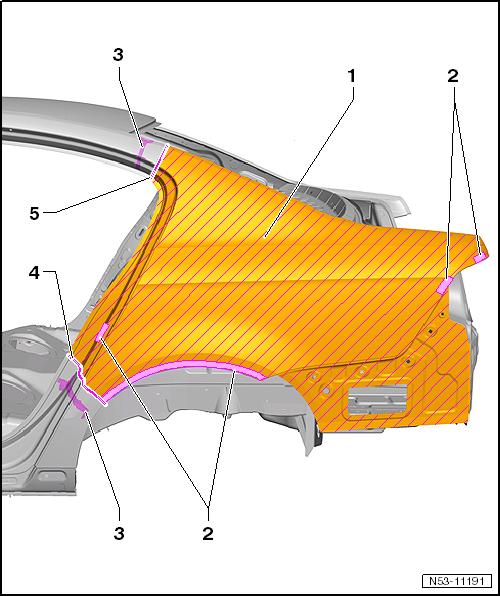

p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 53 55 55 50 11 Renewing side panel - part section WARNING n Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. u Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes 1 - Side panel 2 - Bonded area 3 - Moulded foam elements 4 - Parting cut to side member 5 - Parting cut to roof member Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
